Decimator Design MD-LX Converter

Name: Decimator Design MD-LX Converter
Brand: DECIMATOR
SKU: DEC-MD-LX
Price: 114.00 GBP
Availability: BackOrder

Categories: Decimator Studio, Digital Distribution, Signal Converters, Studio SKU: DEC-MD-LX

£95.00 £114.00 inc VAT

Rated 0 out of 5

0 reviews 33 sold

Special Order Item - Subject to Extended Lead Times

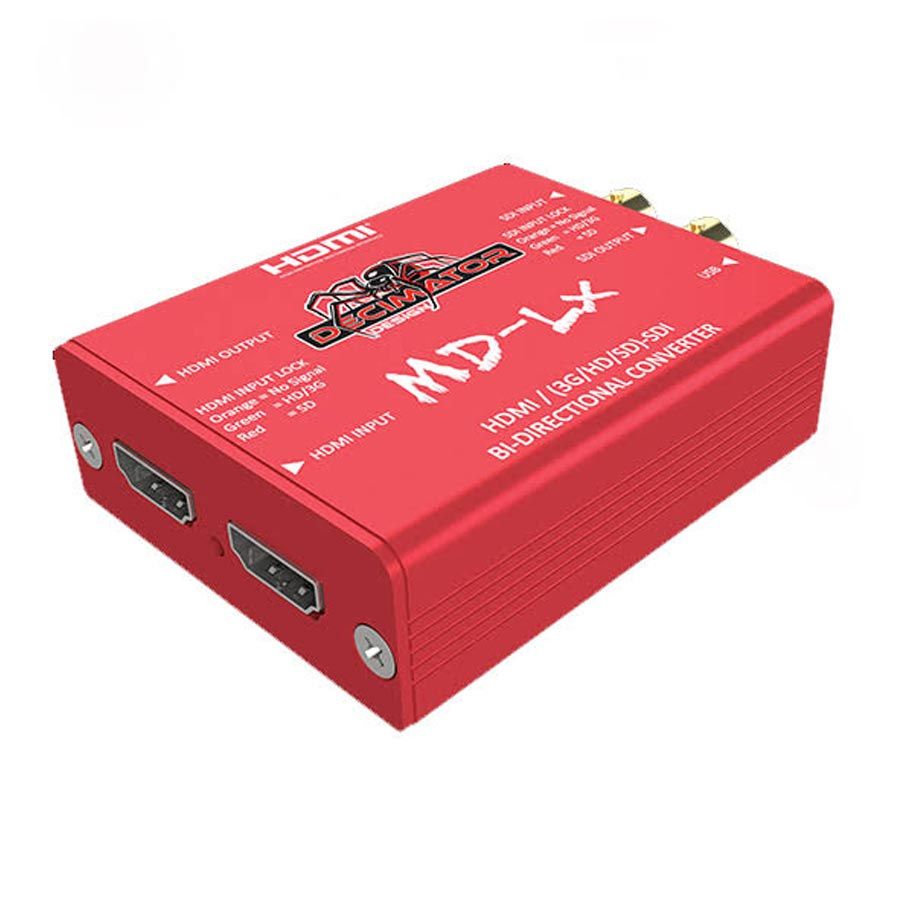

Decimator Design MD-LX Converter (MD-LX) is a pocket-sized bidirectional converter featuring an HDMI input and output on one side, and 3G/HD/SD-SDI input and output on the other. It supports up to Full HD 1080p60 resolution and offers multiple input/output conversion modes.

Features

HDMI IN to SDI OUT and SDI IN to HDMI OUT
SDI IN to HDMI and SDI OUT
HDMI IN to HDMI and SDI OUT

Comes With

1x MD-LX Converter
1x Power Supply
1x USB Cable
1x 3 years manufacturer’s warranty

BRAND	DECIMATOR DESIGN

Specification

SDI Formats
3G-A or 3G-B:SMPTE 424M@2.97 and 2.967Gb/s	1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s	1080i@60/59.94/50Hz 1080p/psf@30/29.97/25/24/23.98Hz 720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s	625i50 (PAL) 525i59.94 (NTSC)
HDMI Formats	1080p@60/59.94/50/30/29.97/25/24/23.98Hz 1080i@60/59.94/50Hz 720p@60/59.94/50/30/29.97/25 625i50 (PAL) 525i59.94 (NTSC)
Inputs	1 x HDMI Type A 1 x (3G/HD/SD)-SDI Micro USB for power, control and firmware updates
Outputs	1 x HDMI Type A 1 x (3G/HD/SD)-SDI
Power	USB Power +4.4V to +5.25V DC Uses under 2.5 Watts
Dimensions	60mm x 73.7mm x 23mm (2.4” x 2.9” x 0.9”)
