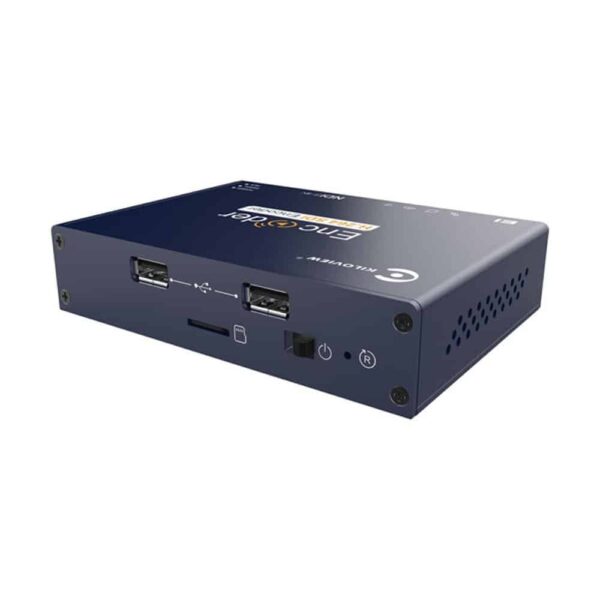

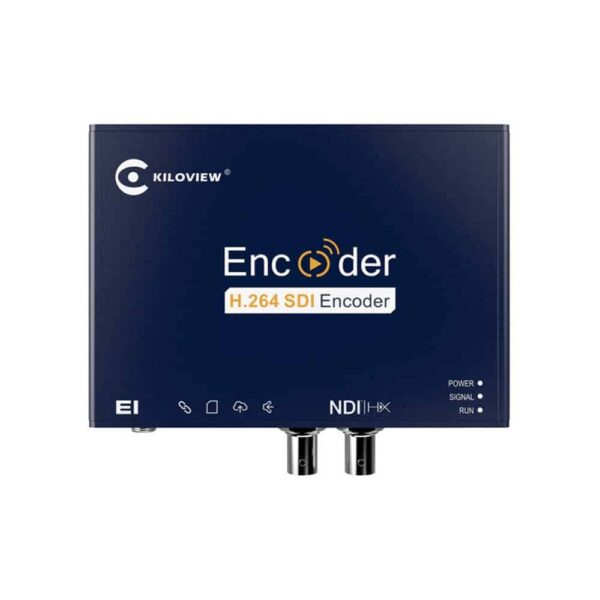

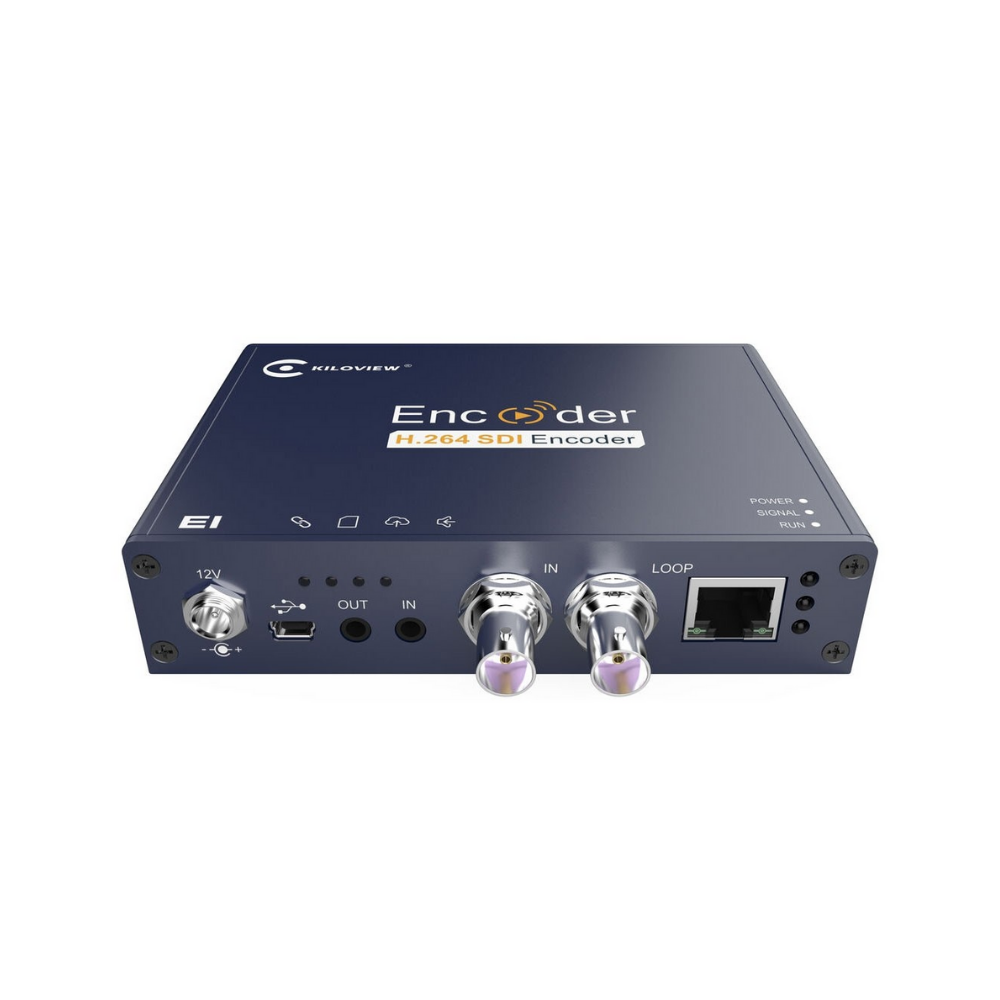

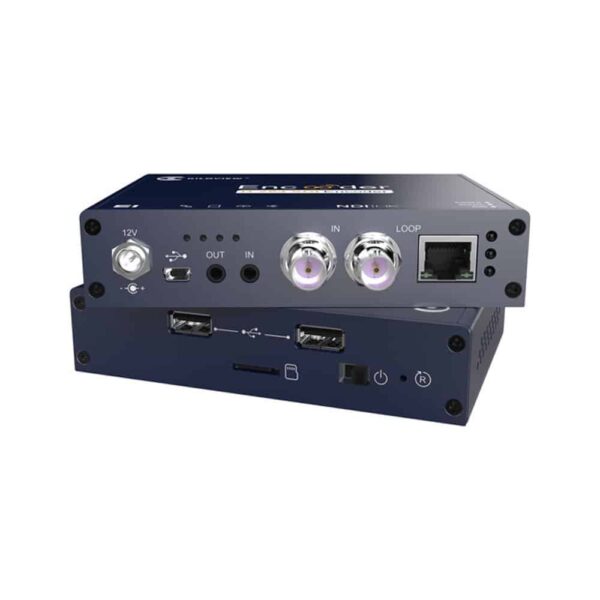

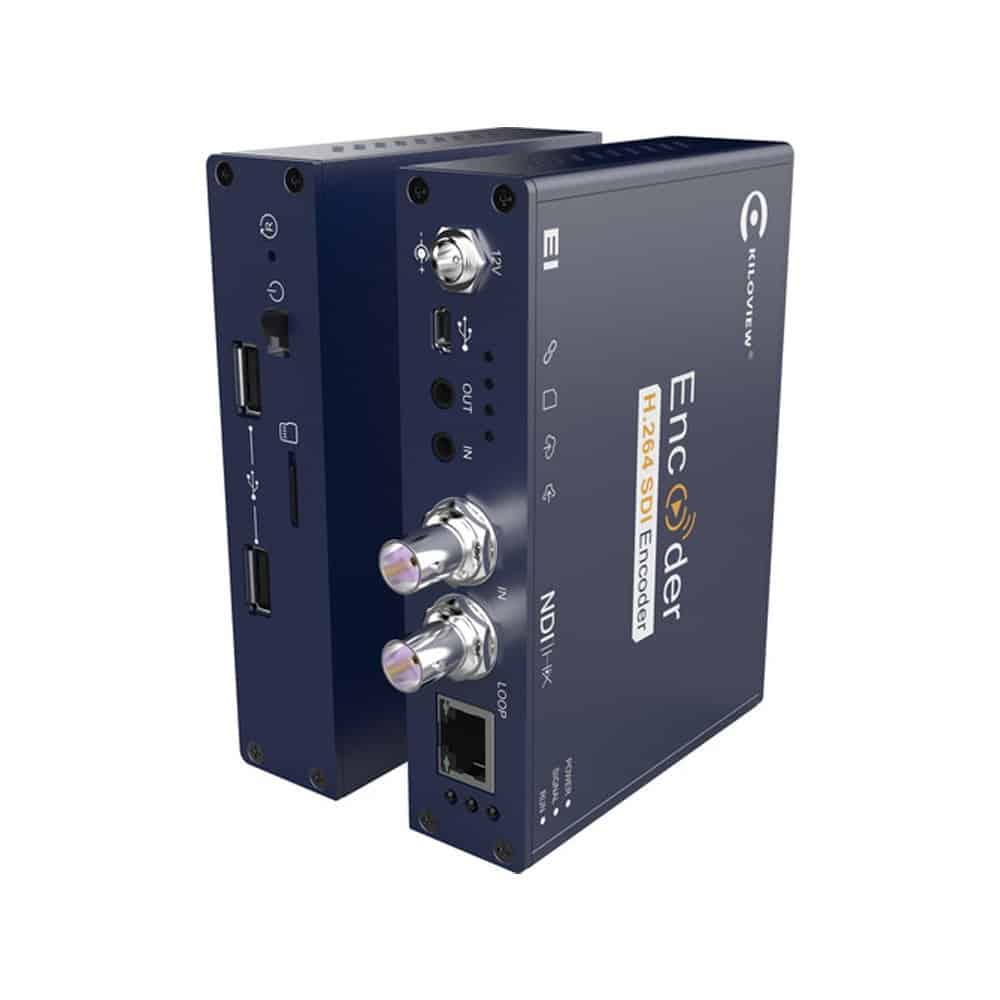

Kiloview E1 HD/3G-SDI Wired NDI Video Encoder

Category: SKU: KW-KILO-E1 Tag:

£438.00 £365.00 Ex. VAT

0 reviews

Order Now - Usually delivered in 2-4 weeks

Description

Kiloview HD/3G-SDI Wired NDI video encoder

Kiloview HD/3G-SDI Wired NDI video encoder (kilo-E1).  E1 H.264 HD SDI to IP Wired Video Encoder. Kiloview E1 H.264 live video encoder delivers H.264 SDI video to various platforms like live broadcasts, Youtube Live, Facebook and live broadcast audio and video encoding for Ustream, Livestream, Twitch, Meridix, Streamspot, Dacast, and more.

High bandwidth adaptability, makes it possible to transmit highdefinition, low-latency, non-padding image under low bit network.

  • With branded chips solution together with video dynamic noise reduction and image enhancement technology, it can realise good encodingimage under low bit transmission. Good video image can be achieved at 1Mbps@720p, 1.5Mbps@1080p network.
  • Advanced video buffering technology and FEC technology ensures video encoding delay ≤ 67ms andstable and smooth transmission.
  • Adjustable bit rate from 64kbit/s～40Mbit/s.

★Note: (≤67ms) refers to the delay of the encoder end, and the end-to-end delay also relates to network, decoding, etc.

Powerful streaming media service function, supports RTSP/RTMP/TS/Onvif and SRT protocols.

  • RTSP/ RTMP/ HLS/ TS/ Onvif and some other streaming media protocols supported for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc or security platform/ NVR system.
  • SRT supported to ensure secure and reliable transmission.
  • Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding.

Portable size, image and characters overlay supported with functions of voice intercom, NAS storage, loop monitoring etc.

  • Portable and low power consumption makes it 24 hours continuous working available.
  • Capable with customised text and image overlay function, which can be at any position on the screen.
  • Audio embedding encoding supported, with voice intercom function (need to deploy voice.intercom software).
  • Supports NAS network storage.
  • With video real-time loop function, there is no delay and convenient for live monitoring.

Strong flexibility to support secondary development, customised service available

  • Open API programming, SDK provided for second development.
  • Customisation service available based on client’s needs.

Professional & Affordable HD NDI Video Encoder

Kiloview E1/E2 NDI H.264 video encoder converts SDI or HDMI base-band video to various H.264 IP streams at the same time with SDI or HDMI loop for monitoring. The supported IP protocols includes NDI|HX/ RTSP/ RTMP/ RTMPS/ SRT/ HLS/TS-UDP/Onvif which can be used for low-latency professional live production, streaming, broadcasting, recording etc. across internet or over private network by broadcasters, churches, schools, hospitals, transportation hubs, enterprises, military etc..

E1 NDI: SDI in/loop
E2 NDI: HDMI in/loop

Why NDI?

The NDI protocol is a high-performance standard that enables anyone to use real-time, ultra-low-latency video on existing IP video networks.

NDI Webcam Input
Easily designate Kiloview NDI encoders as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, Teams and more using the free NDI® webcam input tool.

All Protocols All at the Same Time

It supports full range of protocols including NDI|HX/ RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP/ Onvif. That means live stream with RTMP/RTMPS, while live production with NDI|HX and remote production with SRT, all can be handled at the same time.

It supports ONVIF 1.1/2.0 for easy access to security protection system /NVR System.

Multi-Platform Live

Dual-stream output (main-stream and sub stream), each stream can be used to up to 8 platforms with same or different protocols, altogether it can simultaneously live stream to up to 16 platform. (Main stream resolution up to 1080p60Hz, sub stream resolution up to 720p 60Hz.)

Faster while better

With optimized algorithm, the encoding latency is <67ms. With adjustable bitrate from 64Kbps up to 40Mbps, better video quality is available, typically even at 1Mbps@720p, 1.5Mbps@1080p network, video quality is good enough.

Let’s go Social

With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.

It’s a recorder with OSD

E1/E2 NDI can provide simultaneous recording while you are doing live streaming to many media destinations. And redundant recording is realized with SD/TF/USB/NAS.

Add any self-defined text, time and image overlay at any position to announce your copyrights and have fun!

Real-time Intercom

Both embedded and analog audio encoding are supported. What’s more, with Kiloview voice intercom software (optional), it can realize multi-party voice intercom function.

Additional information

BRAND

KILOVIEW
MPN

KW-KILO-E1
