Lilliput RM-1730S 17.3 Inch Pull-out Rackmount Monitor (1RU)

Categories: , SKU: LILLIPUT-RM-1730S

£959.20 £1,151.04 inc VAT

Order Now - Usually Delivered In 3-5 Working Days

Need advice before you buy?
Speak to one of our specialists about compatibility, accessories, stock availability or choosing the right setup.

Chat with us now

Lilliput RM-1730S 17.3 Inch Pull-out Rackmount Monitor (1RU)

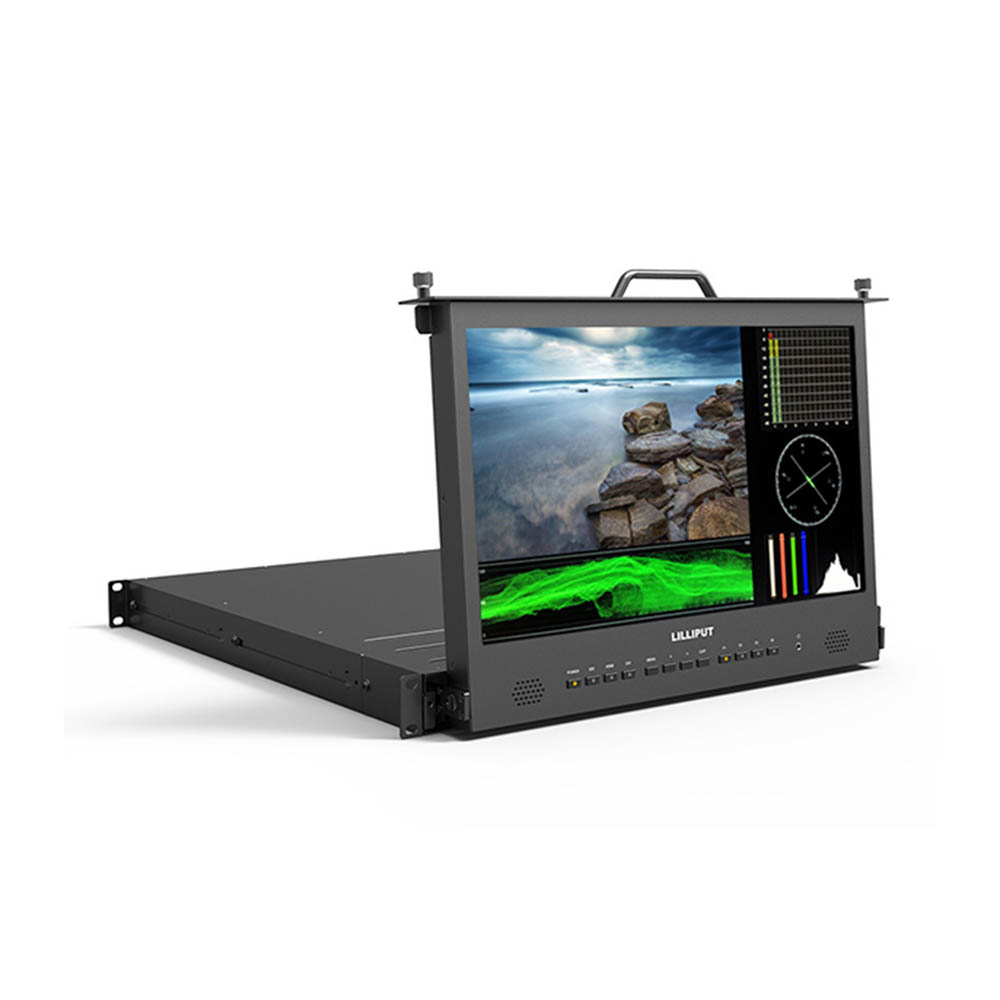

Lilliput RM-1730S 17.3 Inch Pull-out Rackmount Monitor (1RU) (LILLIPUT-RM-1730S) features a 16:9 IPS panel and offers a maximum resolution of 1920 x 1080p60. It offers a brightness rating of 300 cd/m2, contrast ratio of 700:1, and viewing angles of 178°. The monitor comes with a host of functions including cross conversion, timecode, pixel zoom, vector scope, waveform, level meter, peaking, false colour, histogram, exposure, check field, colour bars, and Image flip. Its 1 RU design allows it to be easily integrated into a studio or post-production rackmount setup.

Features:

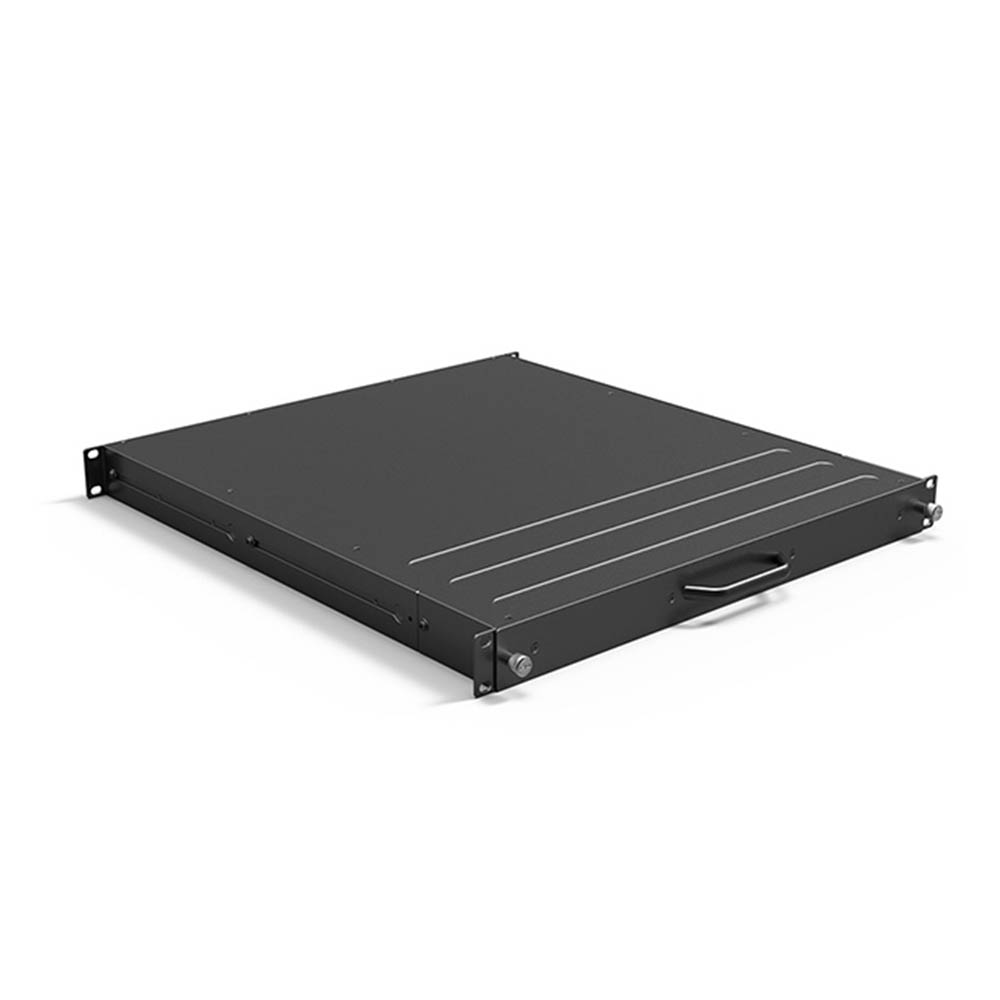

  • Metal housing with pull-out drawer for protection from shocks and drops
  • Monitor powers off automatically when screen is down and pushed in
  • Signal cross conversion from SDI to HDMI, and from HDMI to SDI out

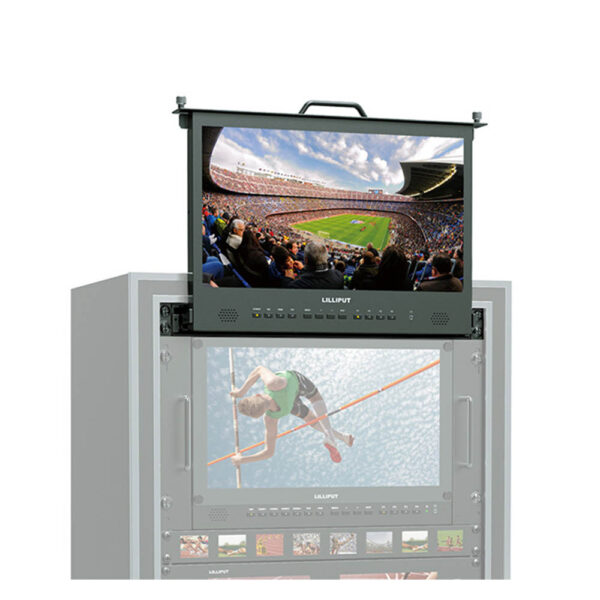

  • Supports various methods of mounting for use in broadcast, on-site monitoring, and live broadcast vans
  • 1 RU rackmount design

Comes With:

  • Lilliput RM-1730S 17.3 Inch Pull-out Rackmount Monitor (1RU)
  • Tally Connector
  • 15 VDC Adapter
  • Limited 1-Year Manufacturer Warranty
BRAND

Lilliput

Specification

Display
Panel Type
LCD
Display Size
17.3" / 44.0 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Maximum Brightness
300 nits / cd/m2
Contrast Ratio
700:1
Image Controls
False Color, Waveform, Color Temperature Selection, Image Freeze, Underscan, Screen Markers, H/V Delay, Focus Peaking
Inputs/Outputs
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
Stereo
Power
Input Power
15 VDC at 2.5
Battery
No
Power Consumption
32 W
General
Operating Conditions
32 to 122°F / 0 to 50°C at 0 to 80% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C
Dimensions
19.9 x 19 x 1.7" / 50.55 x 48.26 x 4.32 cm
Weight
18.95 lb / 8.60 kg
Packaging Info
Package Weight
25.15 lb
Box Dimensions (LxWxH)
26.1 x 23 x 5.2"
