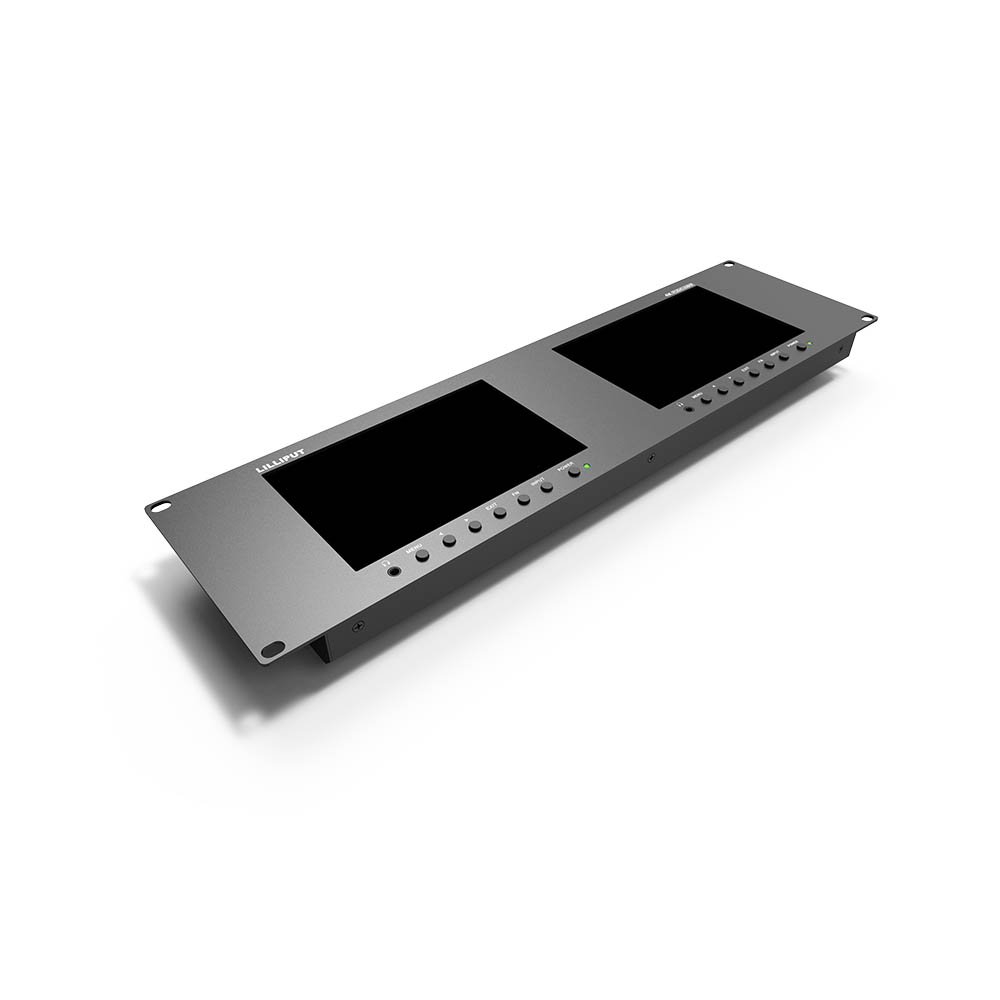

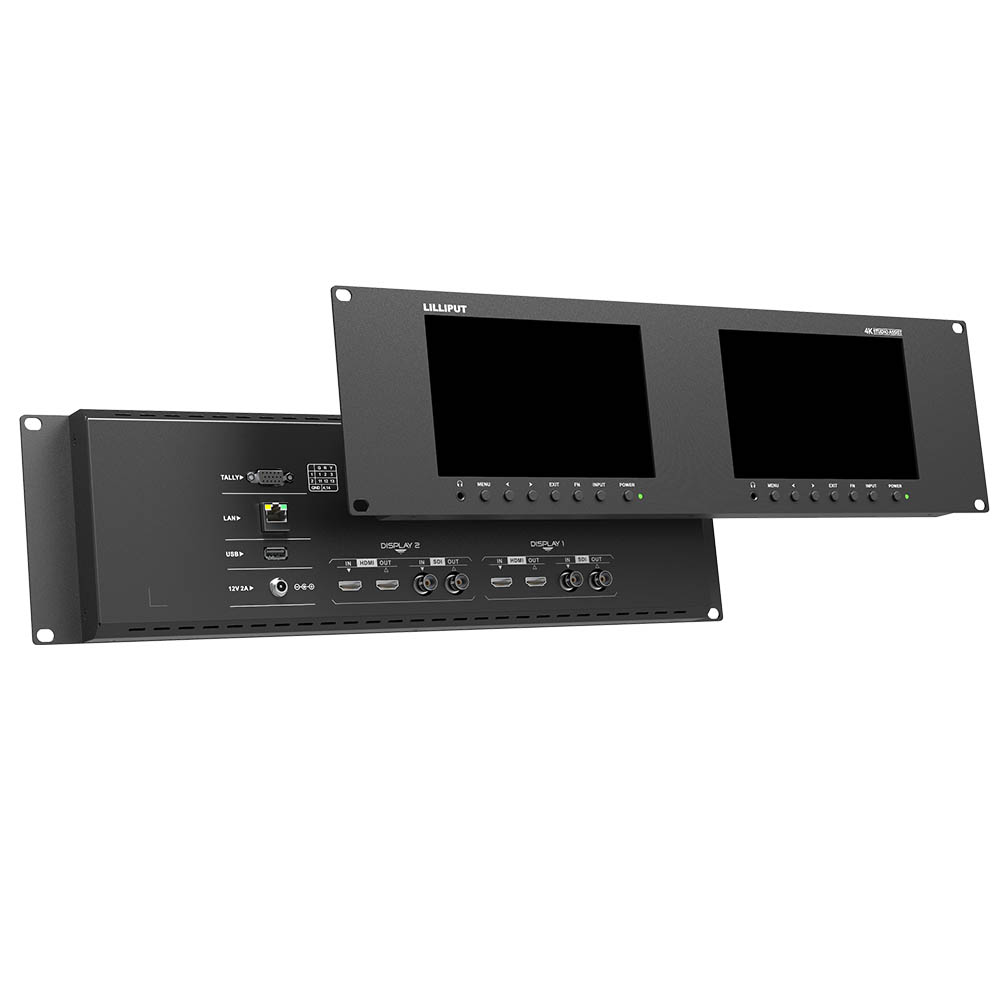

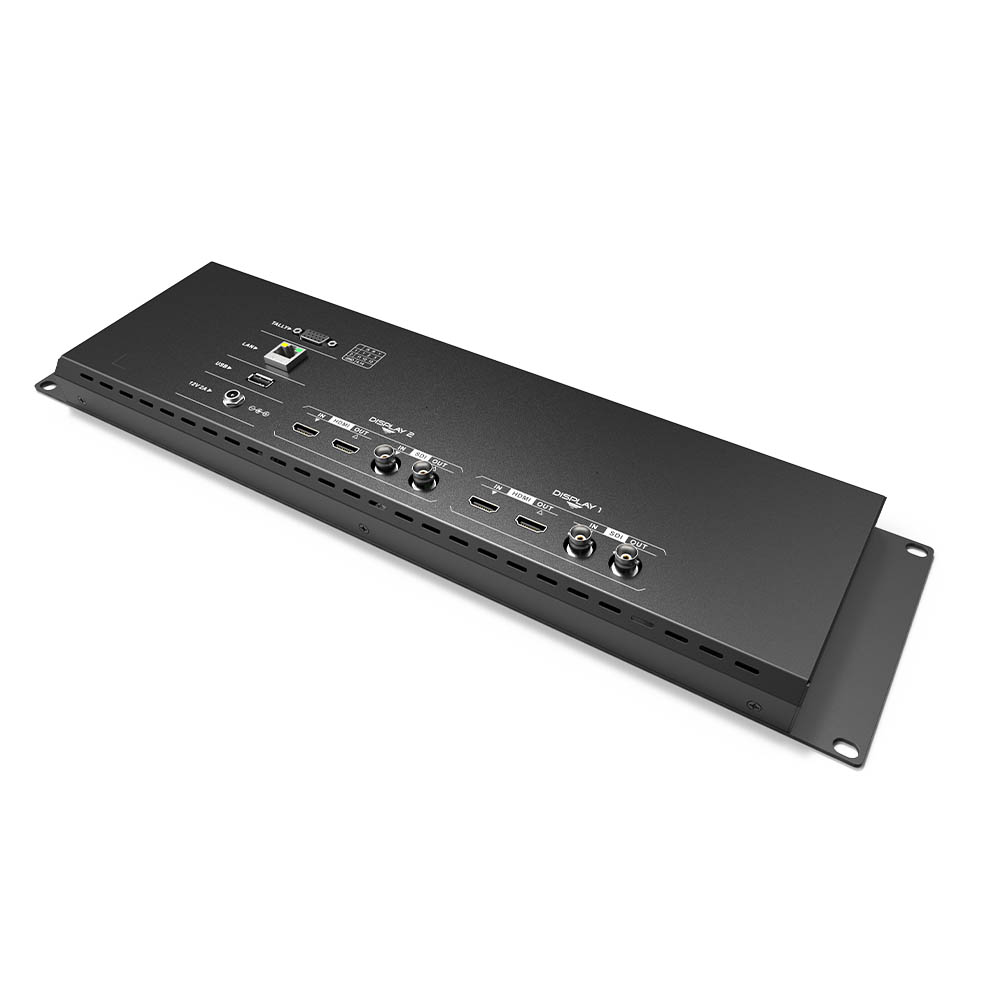

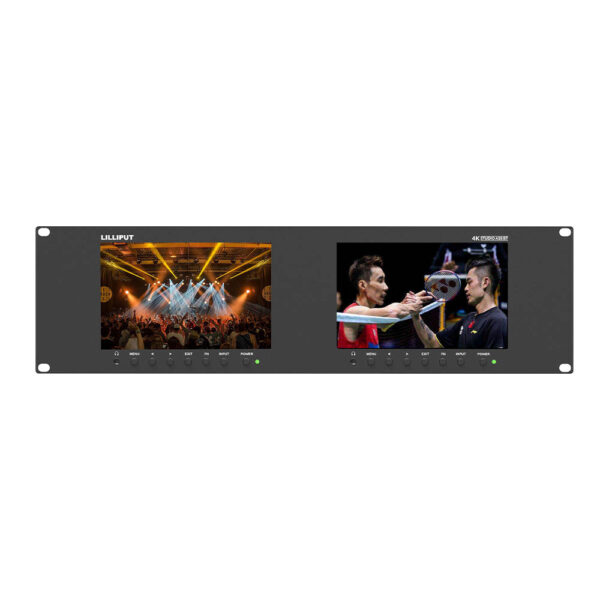

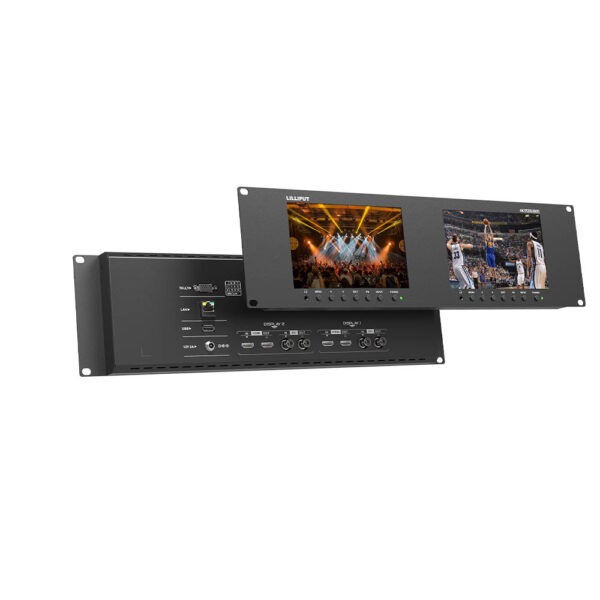

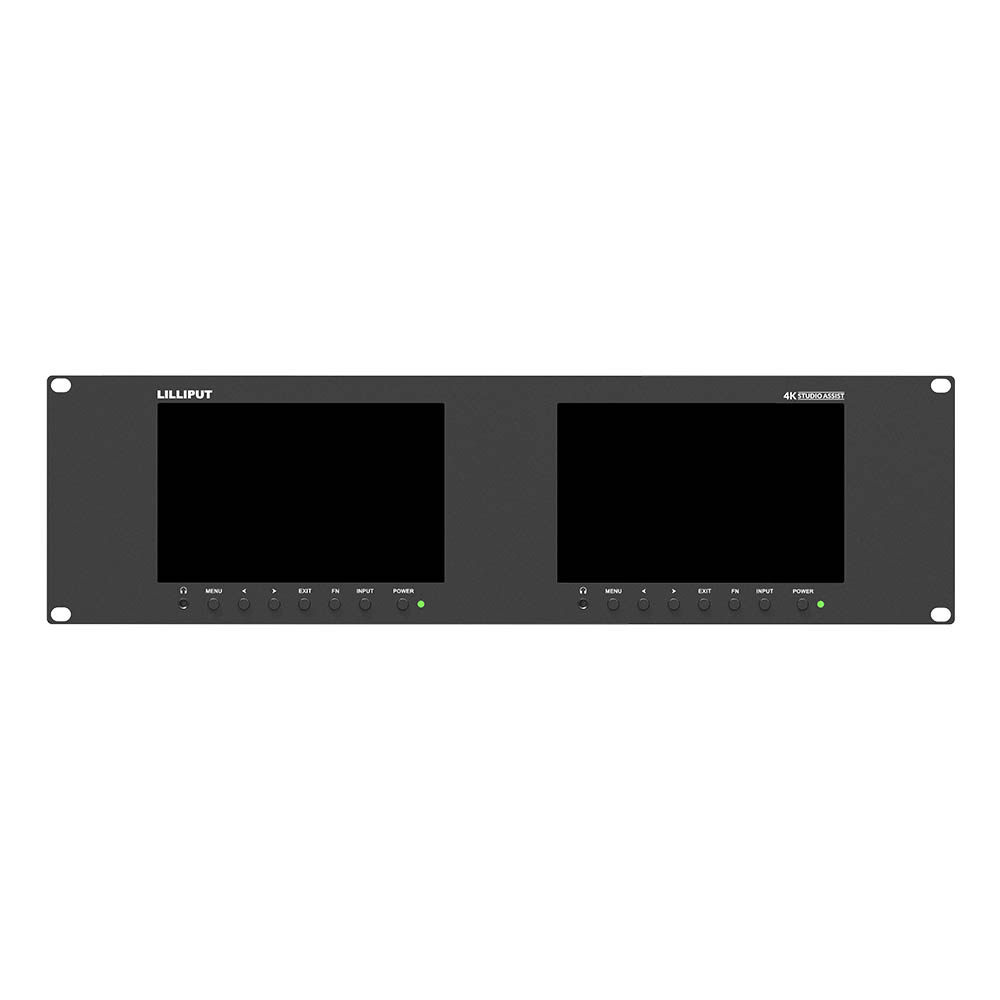

Lilliput RM-7029S 7 Inch Rackmount Monitors
Lilliput RM-7029S 7 Inch Rackmount Monitors (LILLIPUT-RM-7029S) can monitor two different cameras simultaneously for your next live broadcast using the 1920 x 1200 resolution which can be installed in a video wall or broadcast truck thanks to its 3 RU form factor. Various video assist functions such as false colour, histogram, and timecode are independently available for each monitor, allowing production managers to easily and precisely analyse image quality. Custom 3D-LUTs can be uploaded using the USB-A input for accurate colour comparison.

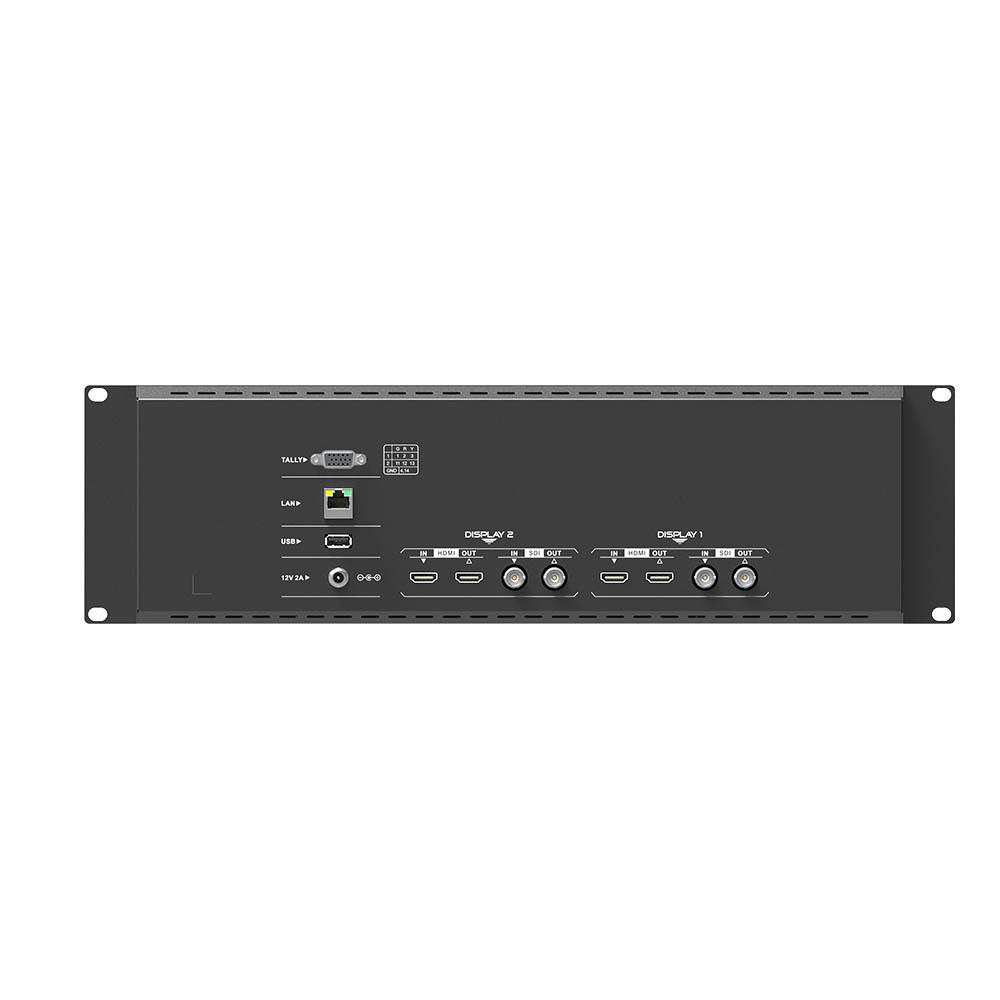

Two 3G-SDI and two HDMI inputs support video up to 1080p60 and 2160p60 respectively. There are also two 3G-SDI and two HDMI loop outputs, which expand your display options. Control for both monitors is possible with the onboard buttons or using the LAN input and a connected computer to adjust settings like picture, marker, function, source, audio, and tally light. Audio can be monitored via the two 3.5mm headphone jacks.
Features:
- 1920 x 1200 LCD 7″ Screens
- For Video Wall or Broadcast Truck
- 3G-SDI and HDMI Inputs/Outputs
- Supports up to 1080p SDI and 2160p HDMI
- Load Custom 3D LUTs via USB
- Support for HDR
- Ethernet Input for Control
- 1 x Headphone Jack per Display
- Supports .cube files uploaded via the USB-A input
- Built-in 17 default logs and six user logs
- Makes colour calibration of previous shooting more intuitive
- When activated, the display reproduces greater dynamic of luminosity
- Allows lighter and darker details to be more visible
- Supports ST-2084 300, 1000, 10,000, and HLG
- Check field
- Colour bar
- Exposure
- False colour
- Freeze
- Histogram
- Level meter
- Markers
- Peaking
- Pixel to pixel
- Pixel zoom
- Timecode
