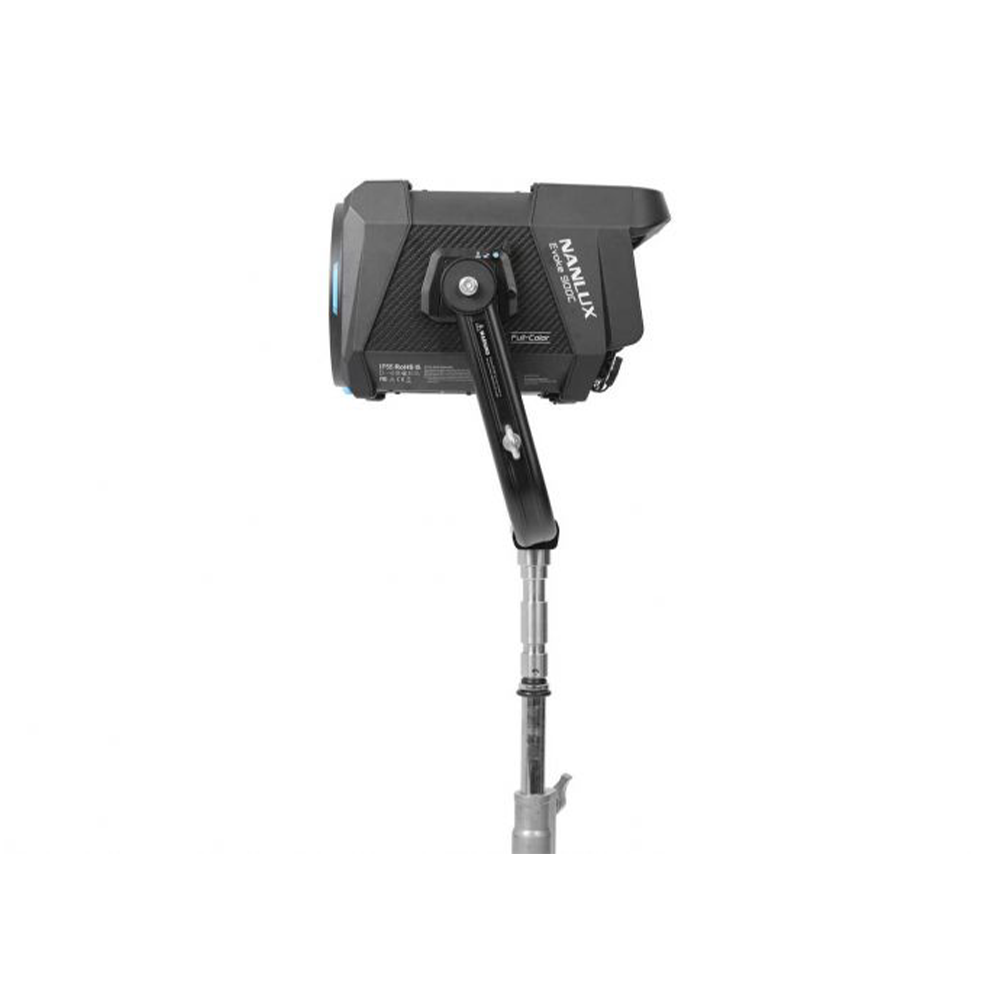

Nanlux Evoke 900C RGB LED Spotlight W/Flight Case

Extraordinary Output and Flexibility
As a point source LED, a quick switch between soft and hard light can be easily achieved on the Evoke 900C via attaching different modifiers. Flooding, spotting and cutting are also a sure thing in order to provide more light shaping freedom for image making.

For virtual production, which has unlimited potential in the future of production, the Evoke 900C will make the presentation with more natural looks, create realistic and natural light, thus greatly improve shooting efficiency.

Blending Six Colors, Achieving New Heights
The Evoke 900C is adopted with the state-of-the-art RGBLAC six color mixing system — adding Lime, Amber and Cyan on base of the primary colors RGB, reaching a new altitude in color accuracy.

Wider Color Space, New Level Fidelity
The RGBLAC color mixing technology on the Evoke 900C enables more color options, and the ultra-wide CCT range also renders the accurate sunlight or moonlight while maintaining excellent light quality all the time.

Comprehensive Controls, Intuitive Operation
The Evoke 900C is built with a combination of 4 buttons, 3 knobs and an upgraded 3.5 inch full-color TFT screen, gives users an intuitive interface and a better operating experience. More comprehensive wired and wireless control methods are available for offering more flexibility for creators based upon the actual scenarios.

DMX/RDM (Wired Control Solution)
The fixture comes with DMX 5-pin port, supporting DMX/RDM control and guaranteeing stable operation for large scenes.

Art-Net/sACN (Wired Control Solution)

The Evoke 900C is equipped with 5-pin XLR in&out ports and LAN in&out ports, supporting basic DMX/RDM control and Ethernet control based on Art-Net/sACN protocol. Through the LAN ports’Art-Net/sACN control, the Evoke 900C could not only easily achieve a much longer distance of signal transmission than traditional cable plus a more convenient control across multiple universes, without affected by signal decay, but also embed seamlessly into Unreal Engine’s lighting system with the matching DMX mode, allowing the Evoke 900C to respond correctly to changes in the virtual environment in real time.

NANLINK APP (Wireless Control Solution)
Access the NANLINK wireless control system through the built-in 2.4G/Bluetooth modules to achieve a precise and professional lighting control experience with ease.

LumenRadio CRMX (Wireless Control Solution)
Through the built-in LumenRadio TimoTwo module, Evoke 900C can receive or transmit CRMX signal, and have the ability to cooperate with other lighting fixtures.

More Lighting Modes
The Evoke 900C incorporates more versatile lighting modes — CCT mode with G/M adjustment, Advanced HSI mode, RGBW mode, XY coordinates and GEL mode. And a DMX mode is developed specifically for virtual production under DMX control. The wide and complete selection of lighting modes gives users the key to adjust colors at will.

Advanced HSI mode
Based on the original HSI mode and expand a higher level of customization, support free adjustment of the Intensity, Hue, Saturation and White Point Color Temperature.

RGBW Mode
R/G/B/W channels can be controlled separately for more accurate color. *More than 1.84e+19 colors are accessible via DMX console.

XY Coordinates
Precise color control through adjusting on the XY coordinates in the selected color gamut of CIE1931 color space.

GEL Mode
Based on traditional gels, the gel mode provides a wide selection of 151 gels, saving times on the gels’installation process, and bringing a more convenient way in presenting the color and mood.

*Available to control on the NANLINK APP in the future

The Evoke 900C has 15 built-in effects to simulate the real lighting effects with all parameters adjustable via On-board, NANLINK APP, DMX and other control methods.

True Color, True Mirage
In today’s rapidly upgrading image-related technology, virtual production brings a new possibility by utilizing intelligent lighting systems, arc LED screen and virtual rendering system — the corresponding perspectives and images in the virtual space can be presented through screen and lighting effects by capturing and computing the movement of the camera in real-time, so that the actors and crews can have a immersive feeling in action. As an intelligent lighting, the Evoke 900C provides various lighting effects in the form of point source lighting with full color functionality, and achieve connections and integration in a higher level via specially developed DMX mode and Ethernet control combining with virtual rendering system.

Nanlux have developed DMX mode — RGB (NO DIMMER) specially to meet the demands from virtual production.By removing dimmer channel and adding Gamma responding option at the same time, lighting control for virtual production will become easier and more responsive. The Evoke 900C has the built-in Ethernet control upon Art-Net/sACN protocol for the first time, facilitating the integration into Unreal Engine’s lighting system, enabling fast and accurate respond to virtual environment changes in real time, enhancing the image expression with better detail.

Robust Structure, Weather Resistant
Evoke 900C retains the great features of the Evoke family for outstanding weatherproof performance — IP55 rated for both the fixture and power supply, making it capable of withstanding extremely inclement weather conditions, the light is a trustworthy weapon for making astonishing images.

The tight and sturdy aluminum structure provides stability during operation. Convenience has been boosted in terms of installation, connection and adjustment.

Intelligent Fan, Handling Both Dissipation and Denoising
Evoke 900C incorporates a new generation adjustable fan control system with SMART, FULL SPEED, LOW SPEED and OFF 4 modes, effortlessly meeting various sound recording requirements. Noise level is at 25dBA under SMART mode. Exceptional performance for both dissipation and noise control will surely bring a better shooting experience for professional productions.

* Automatic switching fan speed under SMART mode by monitoring ambient temperature. Full power output under SMART mode; Full power output under FULL SPEED mode; Maximum power output is 70% under LOW SPEED mode; Maximum power output is 20% under OFF mode.

Maximum Modifiers, Maximum Shaping
The Evoke 900C continues with NL mount, supporting a seamless integration into NL mount ecosystem, takes various light shaping requirements into account with multiple modifiers.
Besides, the Evoke series are also compatible with other professional modifiers, such as DoPchoice. NANLUX always participates in the construction of professional lighting systems with a friendly and open attitude.

Key Features

• Full color LED spotlight equipped with RGBLAC six color mixing system
• Staggering luminance of 40,300 lux at 3m (at 5600K, with reflector), with a rated output of 940W
• Ultra-wide CCT range of 1,800K-20,000K with G/M±200 adjustment
• Excellent color rendition with both CRI/TLCI rated at 96, TM-30 Rf Avg.93, TM-30 Rg Avg.100, SSI
  (5600K) 73, SSI (3200K) 81.
• Intuitive operation with 3.5 inch full-color screen, 4-buttons and 3-knobs UI design
• Comprehensive wired and wireless control methods: On-board, DMX/RDM, Art-Net/sACN, LumenRadio
  CRMX and NANLINK APP
• More color modes: Advanced HSI, RGBW, XY and GEL mode
• Ethernet control upon Art-Net/sACN protocol to seamlessly integrate into UE lighting system
