SmallHD Focus 504 Monitor
Order Now - Awaiting Stock
Frequently Bought Together
-
SmallHD Focus 504 Monitor
£752.00 £902.40 inc VAT -
SmallHD Focus 504 Screen Protector - Clear
£23.07 £27.68 inc VAT -
SmallHD Focus 504 Sunhood
£98.00 £117.60 inc VAT

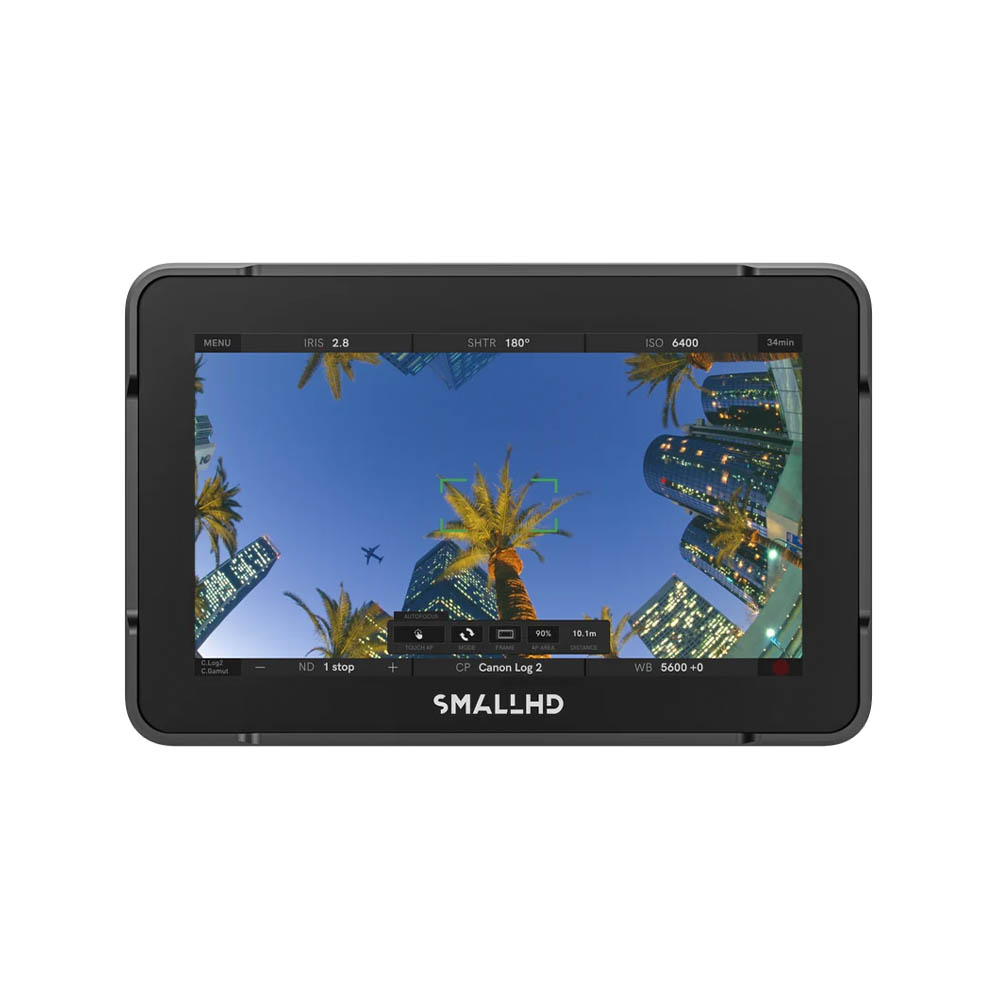

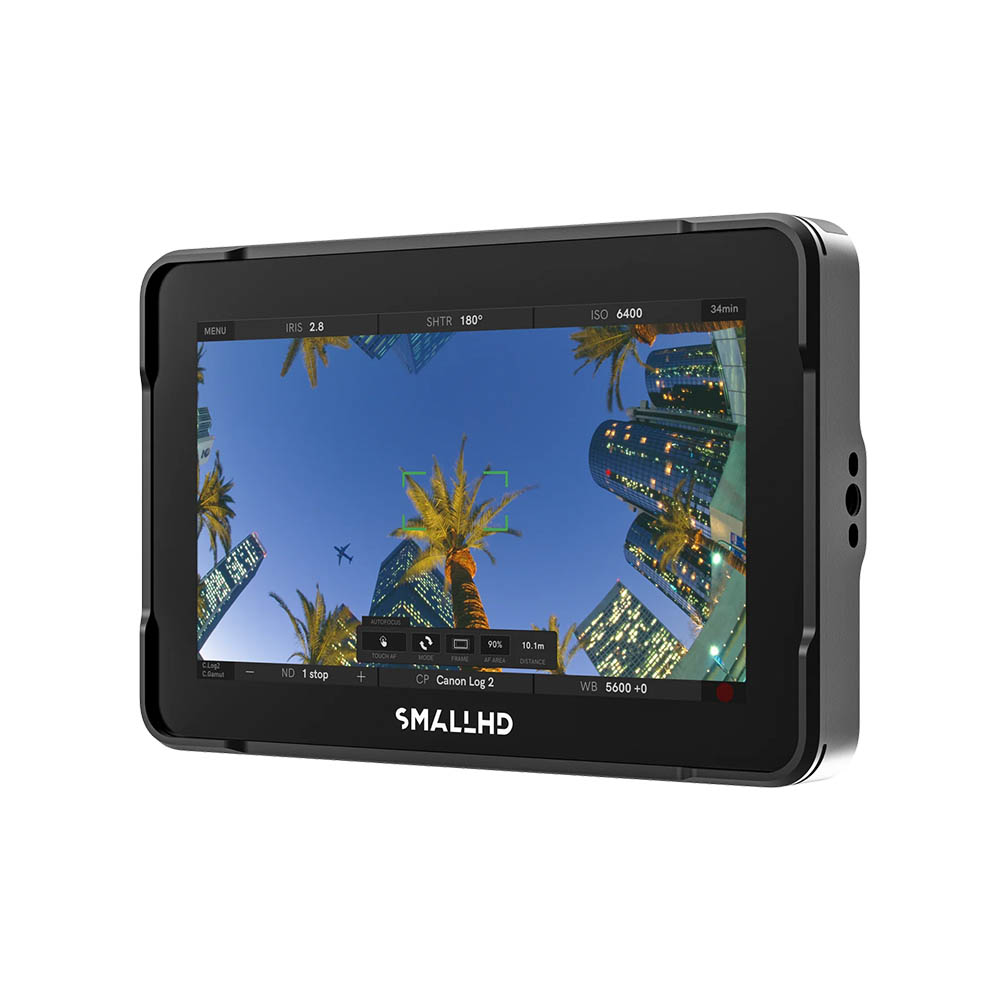

SmallHD Focus 504 Monitor (16-0520) is a compact 5-inch monitor featuring a 1920×1080 touchscreen display with 1000nits brightness and 100% Rec.709 color coverage. Designed for lightweight camera builds, handheld operation, and mobile productions, it combines professional monitoring tools with flexible connectivity in a portable form factor.
The monitor includes both 3G-SDI and HDMI 2.0 input and output, making it easy to integrate into a wide range of camera systems. A locking USB-C port provides power, video, and communication, while two additional locking USB-C ports supply 5V/1.5A accessory power. Integrated 2.4 GHz Wi-Fi enables wireless Camera Control*.
Running PageOS software, Focus 504 provides access to professional monitoring features including customizable pages, exposure and focus assist tools, LUT support, and camera control. Compatible camera control licenses will be available for RED, Sony, ARRI, and Canon cameras, allowing operators to adjust supported camera settings directly from the monitor.

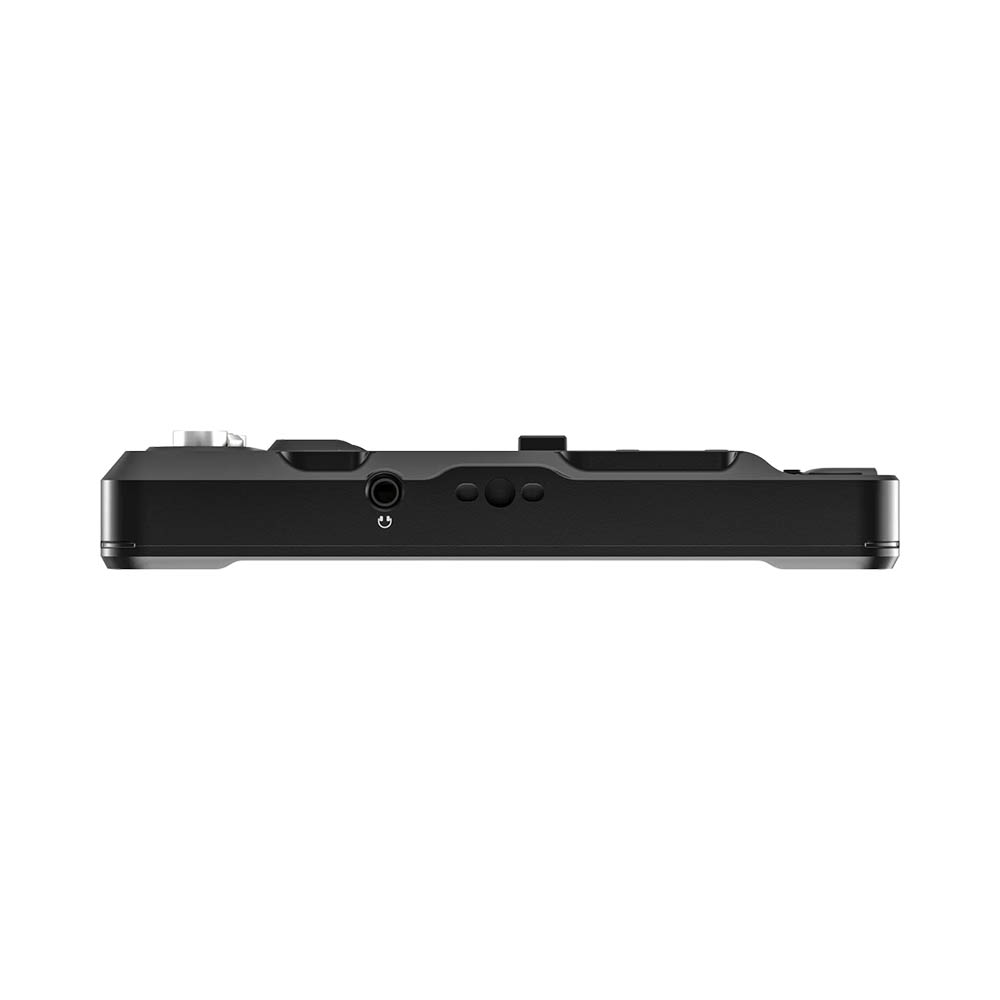

With four ¼”-20 mounting points featuring ARRI locating pins and a raised protective bezel, Focus 504 is designed for flexible mounting and reliable use in production environments where size, weight, and functionality are equally important.

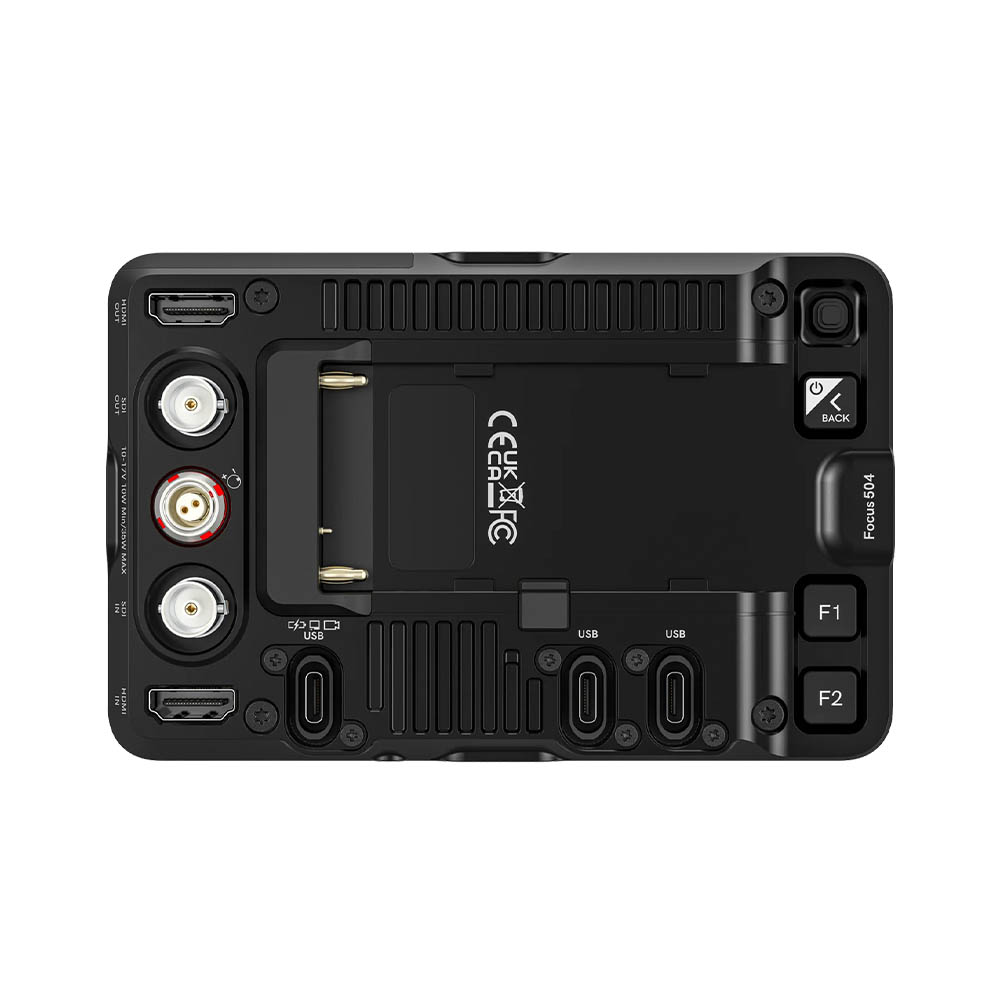

Focus 504 features three USB-C ports compatible with SmallHD locking cables. The PVC (Power, Video, Communication) port supports power input or output, DisplayPort Alt Mode video input, and USB data, depending on the connected device, cable, and firmware.
Two additional USB-C ports support USB data for camera control or firmware updates, LUTs and screen grabs on a compatible flash drive.
*Camera control functionality coming soon. Licenses are sold separately.
Features
- 1000nit 1080p touchscreen with 100% Rec.709 color
- 3G-SDI & HDMI 2.0 in/out
- Camera control for RED®, Sony, ARRI® & Canon*
- Integrated 2.4 GHz Wi-Fi
- Compact 5-inch design for lightweight, handheld & mobile builds

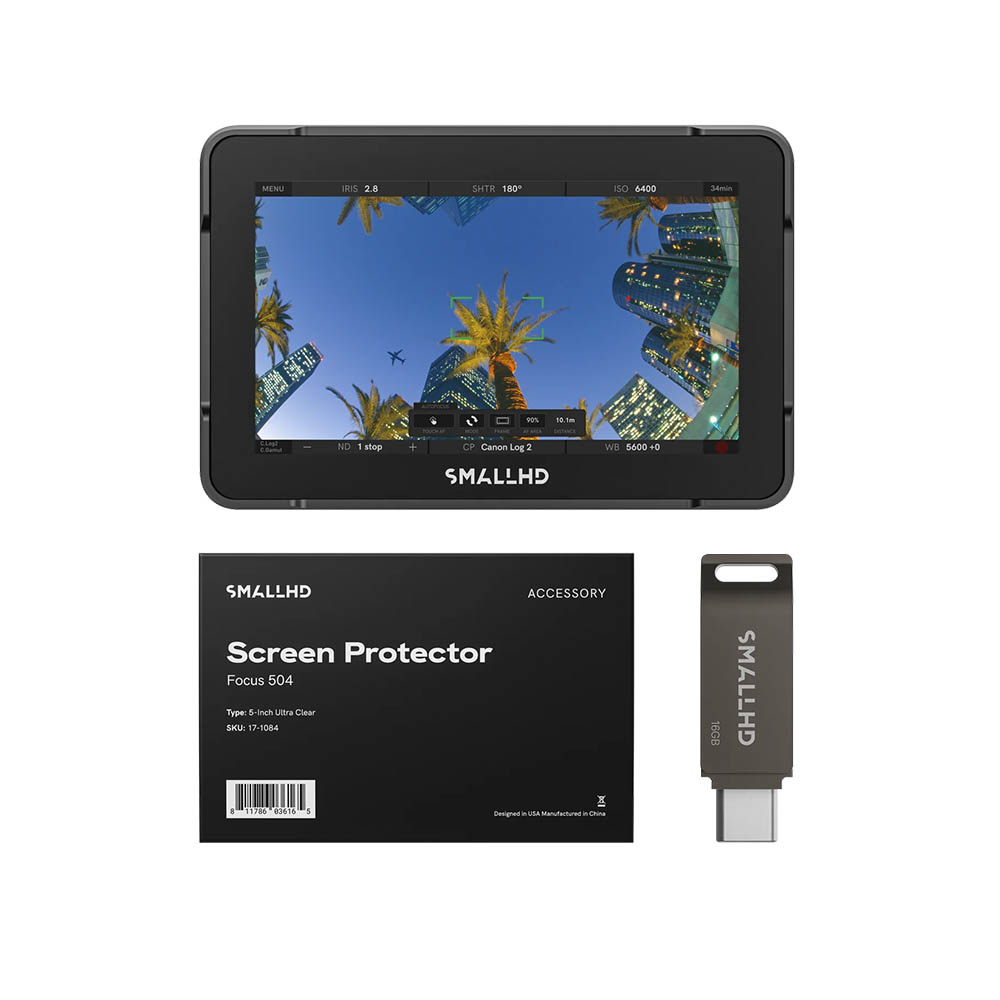

Comes With
- x1 SmallHD Focus 504 Monitor
- x1 Clear screen protector
- x1 16GB USB-A / USB-C Flash Drive
Specification
| INPUT SIGNAL | |
| SD-SDI Input Types | YCC 4:2:2 @ 10-bits: 480i59.94, 576i50 |
| HDMI Input Types | YCC 4:2:2 @ 12 bits, 8-bit colour in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 |
| YCC 4:2:2 @ 12 bits, 8/10/12/16-bit colour in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50 | |
| Audio Input Types | HDMI & SDI – Monitor through Headphone Jack – Metering up to 8 channels |
| OUTPUT SIGNAL | |
| 3G-SDI Output Types | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
| HD-SDI Output Types | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
| SD-SDI Output Types | YCC 4:2:2 @ 10-bits: 480i59.94, 576i50 |
| HDMI Output Types | YCC 4:2:2 @ 12 bits, 8-bit colour in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 |
| YCC 4:2:2 @ 12 bits, 8/10/12/16-bit colour in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50 | |
| Audio Output Types | HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection and 1x 3.5mm 3-pin Stereo Headphone |
| CONNECTOR TYPE | |
| SDI | 1x BNC 3G input and 1x BNC 3G output |
| HDMI | 1 input and 1 output: HDMI Type-A Receptacles (full size) |
| Audio | HDMI & SDI – Monitor through Headphone Jack – Metering up to 8 channels |
| Power In | 2-Pin Locking (10V–17V 10Wmin/35Wmax) |
| Power Out | PVC USB-C (5V 10W MAX) |
| USB | 3x Locking USB-C |
| CONTROLS | |
| Primary | 1x PVC port |
| Record Capture | Image Capture Tool |
| Wireless | 2.4GHz WLAN |
| USB | 3x Locking USB-C |
| DATA I/O | |
| SDI | 1x BNC 3G input and 1x BNC 3G output |
| HDMI | 1 input and 1 output: HDMI Type-A Receptacles (full size) |
| Audio | 1x 3.5mm 3-pin Stereo Headphone Jack |
| USB | 3x Locking USB-C |
| Wireless | 2.4GHz WLAN |
| Wi-Fi | 2.4GHz WLAN |
| POWER | |
| Input | 2-Pin Locking (10V–17V 10Wmin/35Wmax) |
| Output | PVC USB-C (5V 10W MAX) |
| Connector | 2-Pin Locking Connector |
| Consumption | 10Wmin/35Wmax |
| Battery Plate Included | Built-in L-Series |
| Power Supply | Recommend DC 12–15V at ~2.5 amp or greater |
| Battery Types | 1x L-Series |
| Output Voltage | 5V |
| SOFTWARE | |
| Pixel Zoom | 1.1–2.0x & 2.0–8.0x via swipe up/down. Infinitely adjustable via pinch & zoom |
| Frame Guides | Preset Aspect Ratios & Customisable |
| DSLR Scale | Canon 5DMkii & Canon 7D |
| Custom Scale | Yes (Underscan Only) |
| Anamorphic De-Squeeze | 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x |
| Image Rotate | Automatic or Manual Control |
| Image Flip | Automatic or Manual Control |
| Cross Conversion | Yes: HDMI → SDI & SDI → HDMI |
| Focus Assist | User-Adjustable Colour Style and Intensity |
| Peaking | User-Adjustable Intensity |
| False Colour | Rainbow, ARRI Style, Custom with up to 10 nodes |
| Zebra | Dual – User Configurable |
| Waveform | Luma & RGB Style, Fully User Customisable w/ Region of Interest Highlighting |
| Vectorscope | Yes |
| RGB Parade | Fully User Customisable |
| Histogram | Luma & RGB Style |
| Image Capture | Yes |
| LUTs | 33pt Calibration LUT, stored internally |
| 17pt User LUT for Tools, stored on removable media | |
| 17pt LUT available for downstream video | |
| Custom LUTs | Loadable as Looks on Pages or as Systemwide Colour Calibration via the settings menu |
| LUT Downstream | Available on SDI, HDMI, or PVC Out. Applied on Output Preview Page. |
| LUT Import | Via USB Storage Device or Fleet Control App |
| Overlay | With Opacity Slider and Blink Setting |
| Audio Meters | HDMI, SDI up to 8 channels |
| CAMERA CONTROL | |
| Camera Control Compatibility | Camera Control for ARRI |
| Camera Control for Sony VENICE | |
| Camera Control for RED® DSMC2™ | |
| Camera Control for RED® RCP2™ Cameras (KOMODO®, DSMC3™) | |
| *Camera control functionality coming soon. Licences are sold separately. | |
