SmallHD Ultra 7 Monitor

Name: SmallHD Ultra 7 Monitor
Brand: SMALLHD
SKU: SHD-16-0727
Price: 2424.00 GBP
Availability: InStock

Categories: Monitoring, On Camera Monitors SKU: SHD-16-0727

£2,424.00 £2,020.00 Ex. VAT

Rated 0 out of 5

1 sold

Only 1 left in stock

Frequently Bought Together

SmallHD Ultra 7 Monitor

£2,424.00 £2,020.00 Ex. VAT
SmallHD Ultra 7 Matte Screen Protector

£37.20 £31.00 Ex. VAT
£2,461.20
For 2 items

SmallHD Ultra 7 Monitor

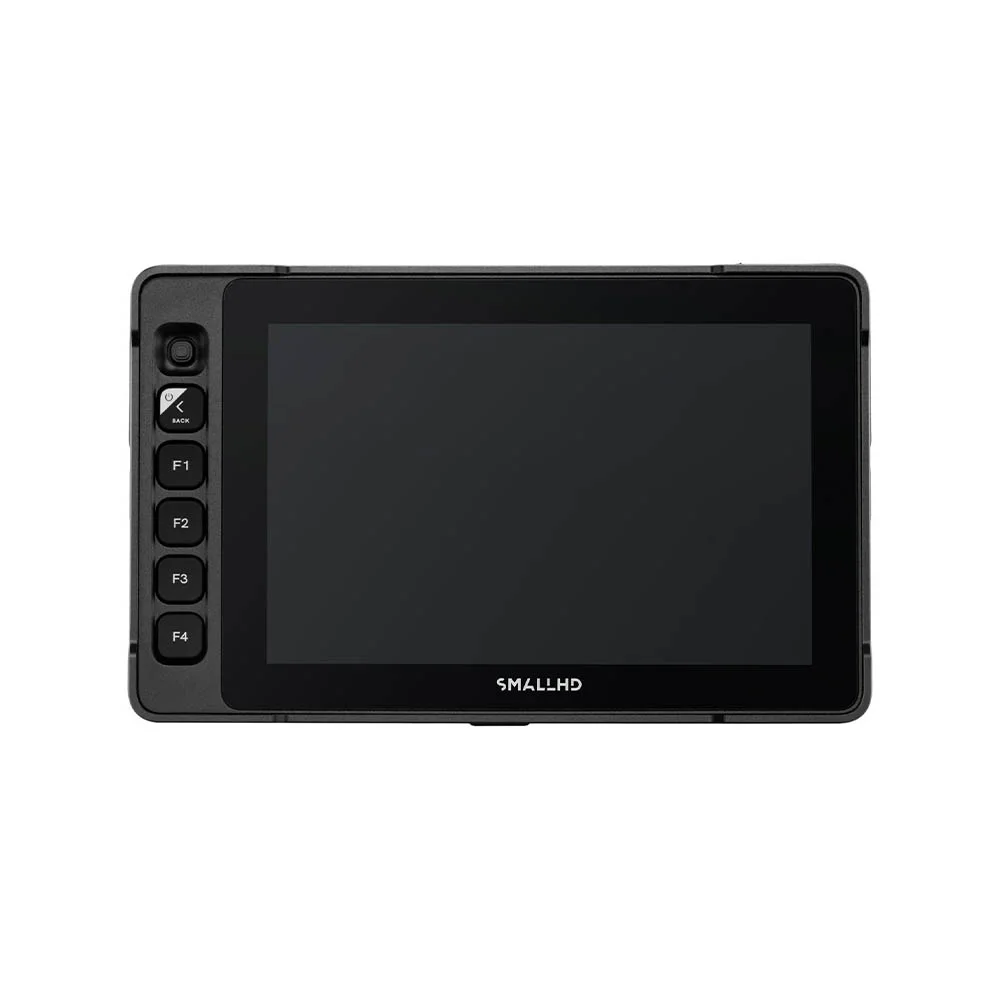

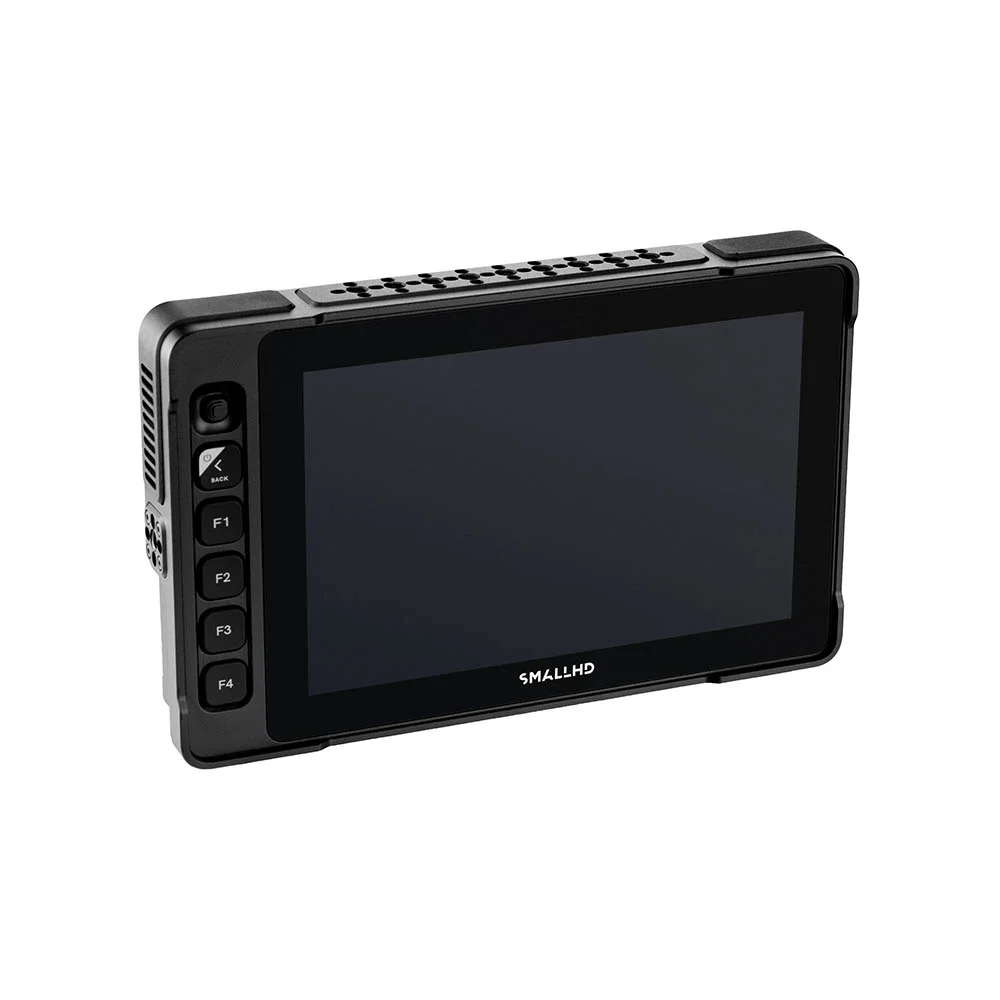

The SmallHD Ultra 7 (16-0727) is a professional 7-inch touchscreen field monitor engineered for cinematographers, camera operators, focus pullers, and broadcast professionals who demand exceptional brightness, advanced monitoring tools, and reliable on-set performance. Featuring an ultra-bright 2300-nit display, the Ultra 7 delivers outstanding visibility in direct sunlight, making it the ideal on-camera monitor for film production, television, live events, and outdoor shooting environments.

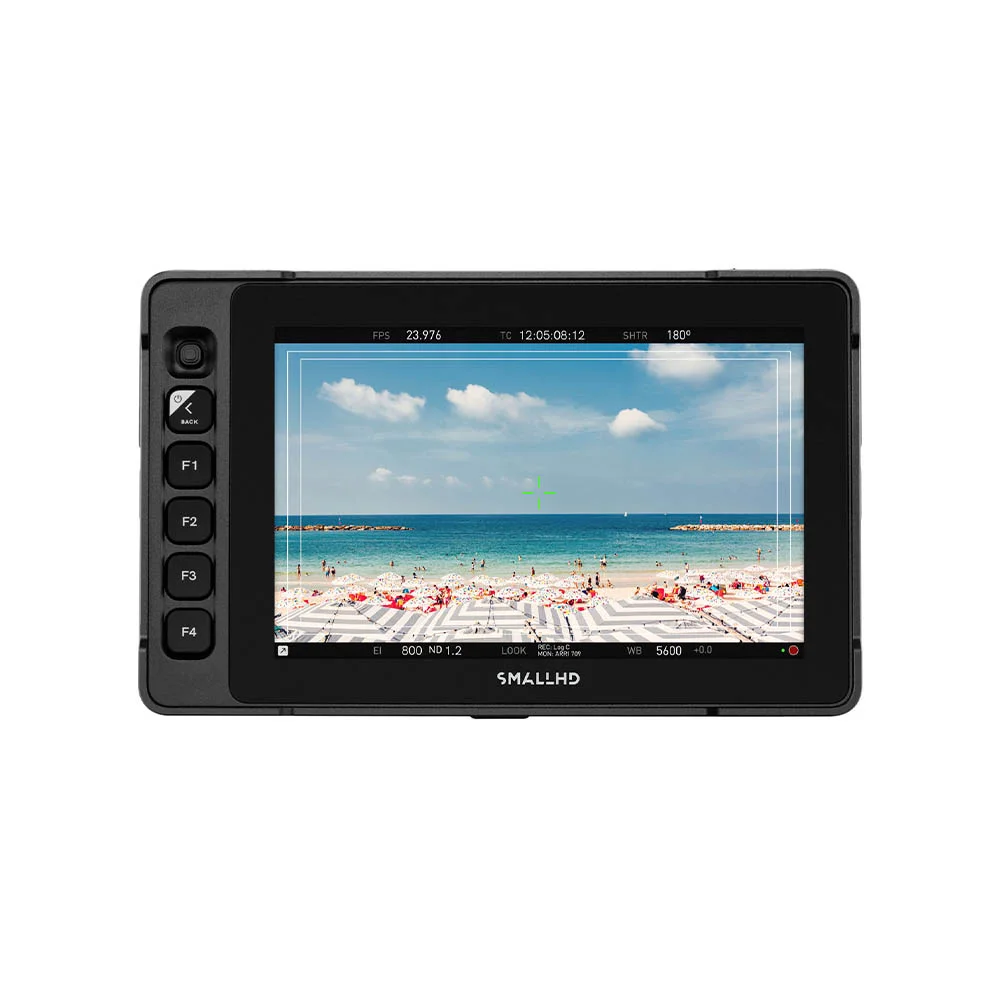

Powered by SmallHD’s industry-leading PageOS software, the Ultra 7 provides access to a comprehensive suite of professional monitoring tools, including waveform, vectorscope, focus assist, false colour, exposure aids, and custom page layouts. Its responsive touchscreen interface is complemented by large front-facing programmable function buttons, allowing users to quickly access critical monitoring functions in fast-paced production environments.

Designed for modern cinema and broadcast workflows, the SmallHD Ultra 7 supports 4K video monitoring via 6G-SDI, enabling seamless integration with professional cinema cameras, broadcast systems, and video production setups. Its rugged construction ensures dependable operation in demanding on-location and studio environments.

The Ultra 7 also offers advanced camera control capabilities, making it a versatile monitoring solution for professional crews. An integrated Ethernet port enables optional camera control for ARRI and Sony VENICE camera systems, while the dedicated 5-pin USB connection supports RED® Camera Control (license and cable sold separately).

For maximum flexibility, the Ultra 7 can be configured with optional Gold Mount or V-Mount Micro Battery Plates, creating a compact and efficient power solution for mobile productions, handheld camera rigs, gimbals, and director’s monitoring stations.

Whether you’re working on a feature film, television drama, commercial shoot, live broadcast, or corporate production, the SmallHD Ultra 7 monitor delivers the brightness, flexibility, and professional monitoring tools required to keep your production running smoothly and efficiently.

Key Features

Professional 7-inch touchscreen field monitor
Ultra-bright 2300-nit daylight-viewable display
SmallHD PageOS professional monitoring software
Supports 4K video monitoring via 6G-SDI
Large customizable front-facing function buttons
Advanced monitoring tools including waveform, vectorscope, and focus assist
Optional ARRI and Sony VENICE camera control
RED® Camera Control support via 5-pin USB (license sold separately)
Optional Gold Mount and V-Mount Micro Battery solutions
Durable design for film, broadcast, and commercial production
Ideal for cinematographers, camera operators, focus pullers, and DITs

Comes with

1 x Ultra 7 16-0727
1 x D-Tap to 2pin Power Cable 36in 17-3000

BRAND	SMALLHD
SCREEN SIZE	7" Inch

Delivery

Please note that for next-day delivery, the product must be marked as in stock and the order placed before the daily cut-off time. If an item is not in stock, an estimated lead time will typically be displayed.

Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).

Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.

*Excluding all Battery Generators*

Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.

*Excluding all Battery Generators*

Worldwide Shipping

At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.

Specification

Environmental
Item Weight (oz)	32
Height (in)	1.36
Width (in)	5.12
Length/Depth (in)	8.23
Display
Panel Type	IPS LCD
Diagonal Size	7.02"
Max Brightness	2300nits
Contrast	1000:1
Gamut	95% DCI-P3 Coverage / 98% REC 709
Colour Depth	10-bit Processing (8-bit panel)
Backlight Type	LED Edgelit
EVF
Resolution	1920x1200
Input Signal
3G-SDI Input Types	YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
6G-SDI Input Types	YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
HD-SDI Input Types	YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Input Types	YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
HDMI Input Types	YCC 4:2:2 @ 12 bits, 8/10/12/16 bit colour in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52
Output Signal
3G-SDI Output Types	YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
HD-SDI Output Types	YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Output Types	YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
HDMI Output Types	YCC 4:2:2 @ 12 bits, 8 bit colour in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit colour in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51
Audio Output Types	HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
Data I/O

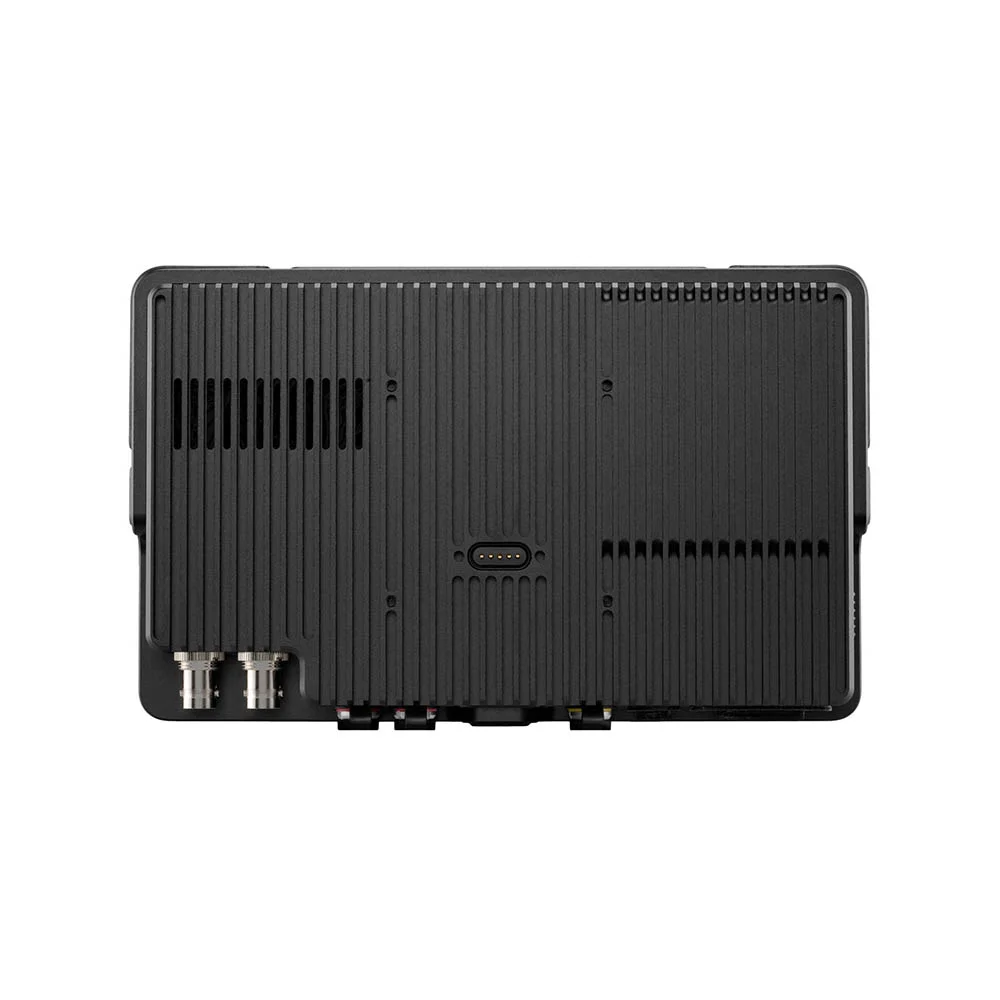

SDI	1x BNC 6G input and 1x BNC 6G input/output (12G BNC compatible)
HDMI	1 input and 1 output: HDMI Type-A Receptacles (full size)

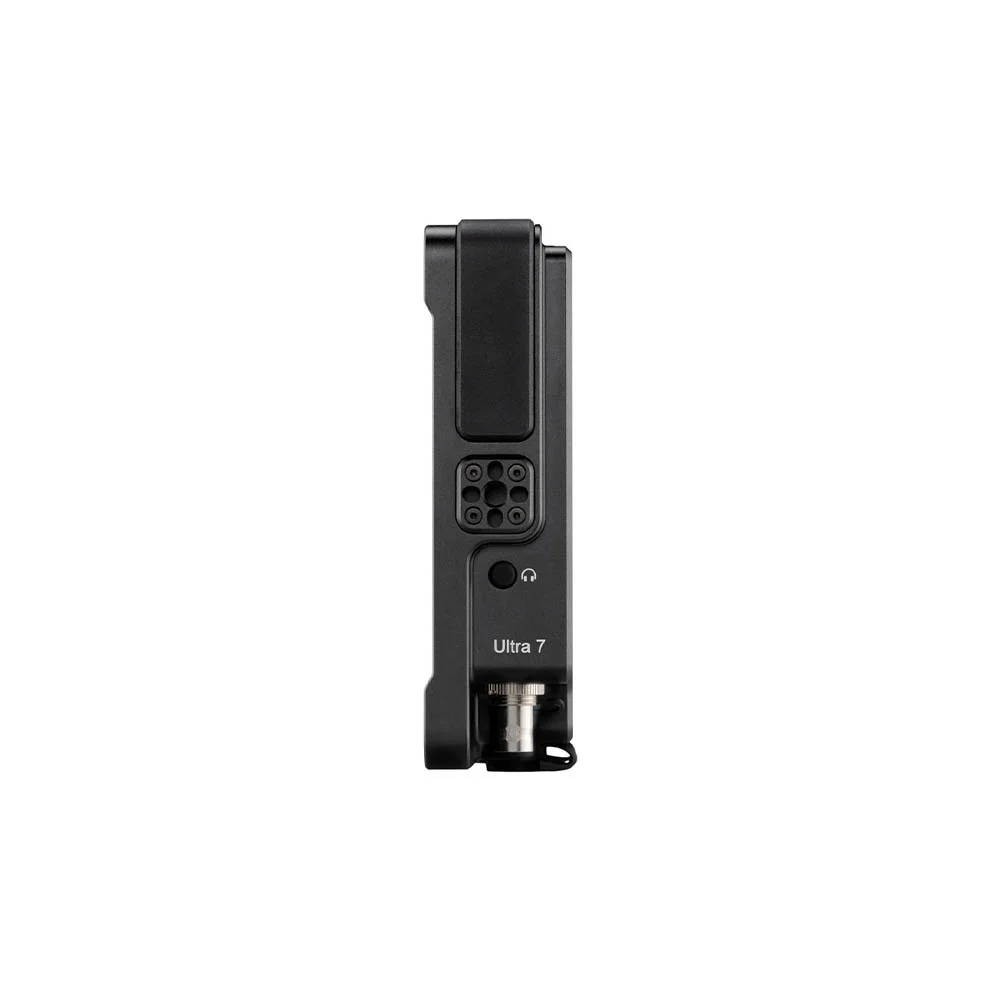

Audio	1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet	RJ45
Power
Connector	2-Pin Locking Connector
Voltage	DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Power Supply	Recommend DC 12~15V at ~2.5 amp or greater
Battery Types	V Mount, Gold Mount Micro Battery Plates
Overload Protection	DC input: Reverse polarity
Software
Pixel Zoom	1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides	Preset Aspect Ratios & Customizable
DSLR Scale	Canon 5DMkii & Canon 7D
Custom Scale	Yes (Underscan Only)
Anamorphic De-Squeeze	0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate	Automatic or Manual Control
Image Flip	Automatic or Manual Control
Cross Conversion	Yes: HDMI → SDI & SDI → HDMI
Focus Assist	User Adjustable Colour Style and Intensity
Peaking	User Adjustable Intensity
False Colour	Rainbow, Arri Style, Custom with up to 10 nodes
Zebra	Dual - User Configurable
Waveform	Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope	Yes
RGB Parade	Fully User Customizable
Histogram	Luma & RGB Style
Image Capture	Yes
LUTS	- 33pt User LUT instead of 17pt - 33pt Cal LUT instead of 17pt - LUT tool continues to work after removable media containing the LUT has been removed
Custom LUTS	- Loadable as Looks on Pages or as Systemwide Colour Calibration via the settings menu - LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page - LUT Import: via SD Card or USB Storage Device
Colour Pipe	- Unique Calibrations may be saved to each Colour Pipe - Accurate colour processing
Overlay	With Opacity Slider and Blink Setting
Audio Meters	HDMI & SDI up to 8 channel
Multi-View	2 camera feeds simultaneously while filling vertical 9x16 screen with two 16:9 images on its vertical axis (Coming Soon)
