Sony ECM-77B Lavalier Microphone

Name: Sony ECM-77B Lavalier Microphone
Brand: SONY
SKU: SY-ECM-77B
Price: 462.00 GBP
Availability: InStock

Categories: Deals, Microphones, Wired Microphone SKU: SY-ECM-77B

~~£415.00~~ £385.00 £462.00 inc VAT

Rated 0 out of 5

0 reviews

In stock

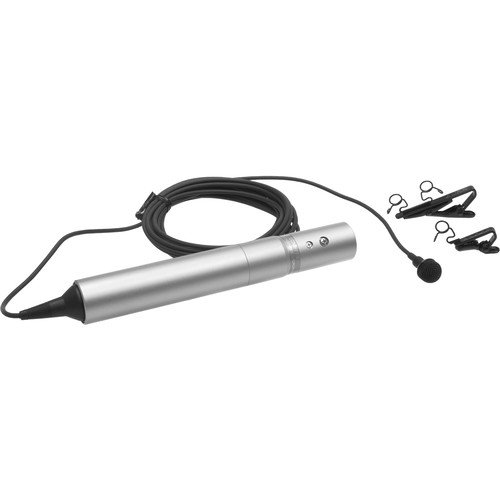

Sony ECM-77B Lavalier Microphone (SY-ECM-77B) is a miniature lavalier (tie clip) microphone designed to be inconspicuous. This tiny microphone runs on either phantom power or AA battery operation and comes with an XLR connector. Useful for studio, ENG, and EFP applications.

Hands free microphone

Allows the presenter to concentrate on her/his performance.

Summary

Battery Mount / Type: AA

Connectivity: XLR-3-12C

Direction: Omnidirectional

Microphone Type: Lavalier Microphone

Phantom Power: 48

Comes With

1x Single/vertical type tie clip
1x Single/horizontal type tie clip
1x Operating instructions
1x Mic case
1x Metak-mesh type windscreen
1x Double/horizontal type tie clip

BRAND	SONY
MPN	SY-ECM-77B

Specification

Capsule Type	Electret Condenser
Frequency Response	40 Hz to 20 kHz
Directivity	Omni-directional
*Sensitivity [1]**	-52.0 dB ±2 dB
*Output Impedance [2]**	150Ω±20%, Balanced
Dynamic Range	90 dB or more
*Signal-to-Noise Ratio [3]**	64 dB or more
*Inherent Noise [4]**	30 dB SPL or less
*Induction Noise From External Magnetic Field [5]**	5 dB SPL or less
*Wind Noise [6]**	40 dB SPL or less (with windscreen)
*Maximum Input Sound Pressure Level [7]**	120 dB SPL
General Section
Connector	B type. Supplied with XLR-3-12C (male) connector in power supply unit (single AA size battery)
Mic Cable	9.8 feet 3 m
Power Requirements	DC 1.5 V (AA size battery) or +48 V phantom power
Battery Operating Time	Approx. 6000 h (LR6)
Power Consumption	Internal battery: 0.3 mA or less External battery: 2 mA or less
*Dimensions [8]**	o5.6 X 12.5 mm (Mic head) o20 X 133 mm (Power unit XLR type) o13/16 X 5 1/4 inches (Power unit XLR type) o1/4 X 1/2 inches (Mic head)
Mass	Approx. 4.3 oz (with power supply unit) Approx. 121.5 g (with power supply unit)
Notes
Note	[1] 0 dB = 1 V/Pa, at 1 kHz [2] Output impedance at 1 kHz [3] A-weighted, 1 kHz, 1 Pa. [4] 0dB SPL = 20? Pa. [5] dB SPL/1E-7 T, 0 dB SPL = 20? Pa. [6] Wind noise at 2m/s (0 dB SPL = 20?Pa.) [7] 0 dB SPL = 20? Pa. [8] The values for dimensions are approximate.
