Swit PL-E90P 90W IP54 Waterproof Panel LED

Description

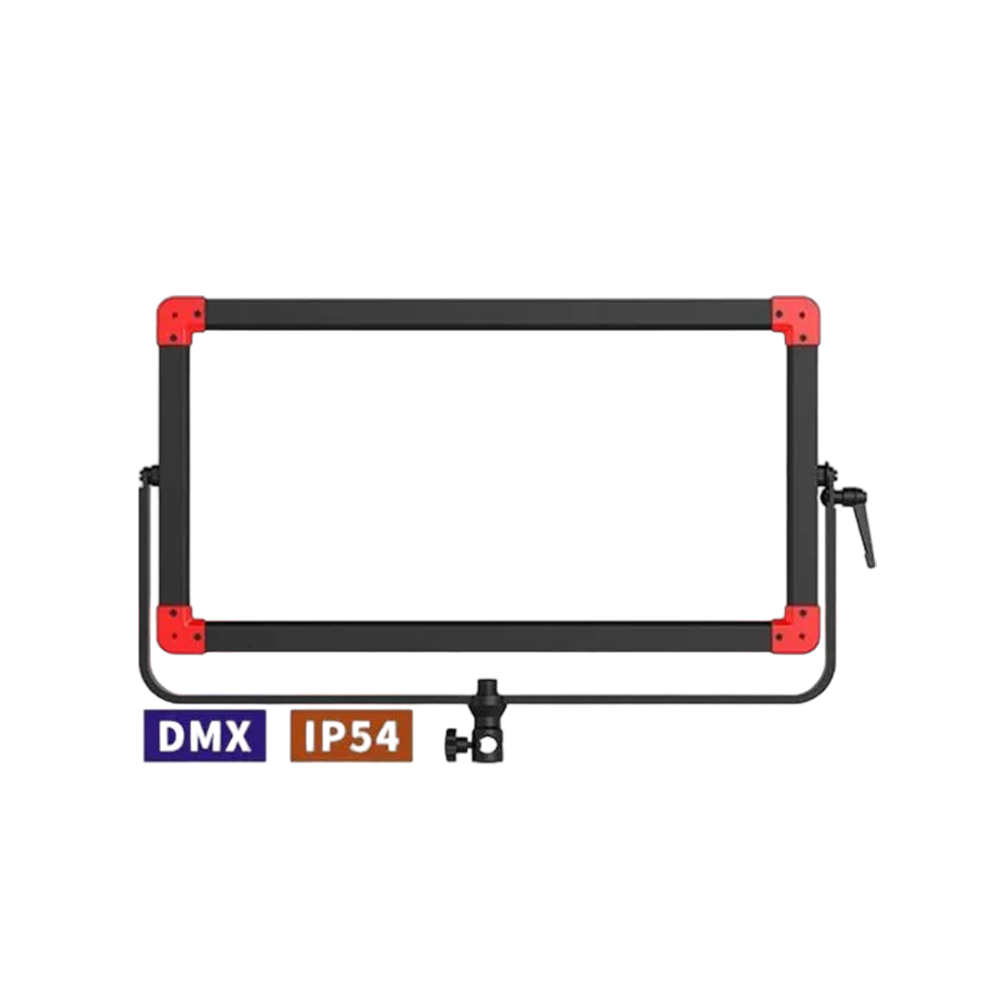

Swit PL-E90P 90W IP54 Waterproof Panel LED (PL-E90P) is an advanced version of the PL-E90D, with additional IP54 rainproof structure. The light can work in the rain at any angle without external protection, and provides IP54 rainproof V-mount batteries to work together.

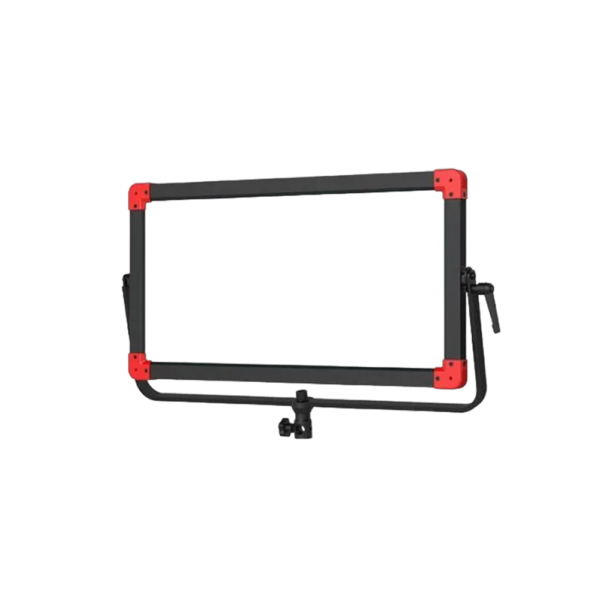

480pcs Edge Mounted LEDs
Super thin, soft and glareless

PL-E90P is specifically designed for field portable lighting applications. 480pcs SMD-LEDs are mounted in the inner edge of the light frame. With SWIT unique 90° light guide technology, PL-E90P can output bright, soft, equal spread of light. The light weight body is slim and portable, which is an ideal light source for interview shoots and field video productions.

2200 Lux @ 1 meter
0-100% flick-free dimming

PL-E90P outputs 90W power, feeds 2200Lux luminance at 1 meter distance (center), much brighter than other similar size LED panels. The effective beam angle reaches 70°, bounded by 50% decline. PL-E90P also supports 0 to 100% PWM digital dimming, smooth and non-flickering.

Bi-color Temperature
2700K-6500K, continuously adjustable

PL-E90P alternates with 2700K and 6500K LEDs, and the output color temperature can be continuously adjustable between 2700K and 6500K.

High Color Render Index
CRI Ra 98; TLCI 99

CRI (Color Rendering Index)  measures the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is specifically for the color reveal ability by camera sensor. Max value 100.

The normal LED light has 80-85 CRI or TLCI, while PL-E90P offers the super high CRI at 98 and TLCI at 99, and will not lose the objects original colours.

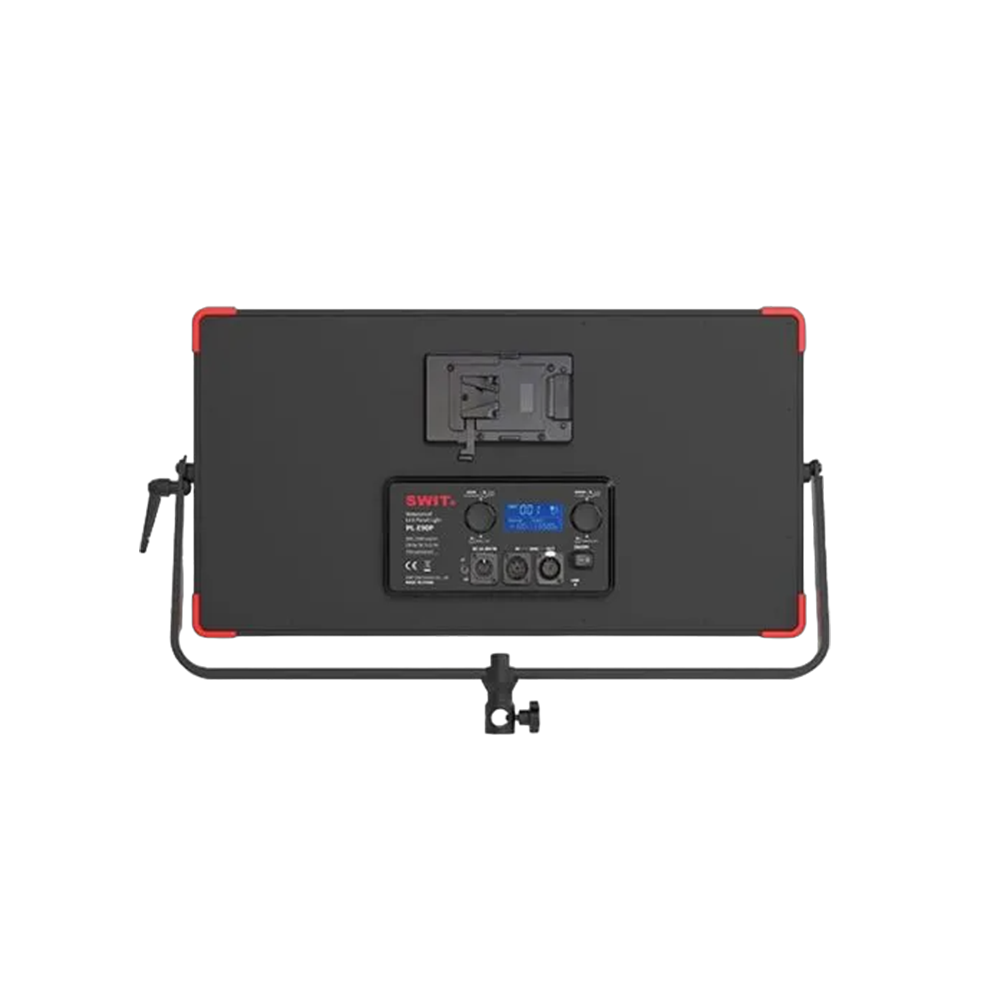

LCD Screen Display
Dimmer / color / DMX channel, battery info

The rear LCD screen can display the current dimmer percentage, colour temperature value, DMX channel and CH channel, and remaining battery indications.

DMX512 control
Dimmer and Color temperature

PL-E90P adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and color temperature by DMX controller.
The dimmer and color temperature occupy 1 DMX address respectively.
Press and hold dimmer knob for 2 seconds to enter communication address setting interface, the address setting range is 001 to 512.

Quick Adjust Mode
By pressing the adjusting knob

PL-E90P supports quick adjusting brightness and color temperature: Press the Dimmer knob, it will switch from 1% stepping to 10% stepping, to quick adjust brightness; Press Color temperature knob, it will switch from 50K stepping to the following commonly used color temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.

Interaction Control Mode
Control the lights each other without a DMX consoler

Press and hold color temperature adjusting knob for around 2 seconds, the upper left corner of LCD shows “CH” indicating that the communication control mode currently is interaction control mode.

In this mode, set the target lights to the same communication address to work normally, and the master slave machine is not distinguished.
Press and hold dimmer knob for 2 seconds to enter communication address setting interface, the address setting range is 001 to 512.
