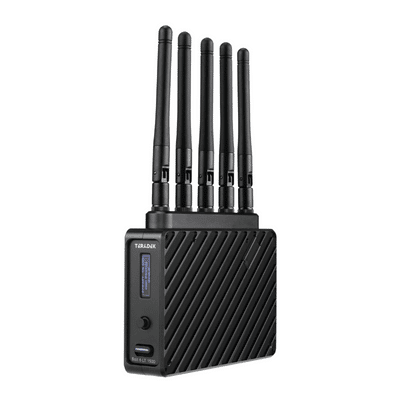

Teradek Bolt 6 LT 1500 RX Gold-Mount
Order Now - Usually delivered in 1-2 weeks
Teradek Bolt 6 LT 1500 RX Gold-Mount (TER-10-2271-G) features new technology that doubles the frequency range of Bolt 4K’s zero-delay wireless video to the 6GHz U-NII 5 band.
This means 12 new 40MHz wide channels and an upgraded long-range signal algorithm for the gamut of production environments.
Each Bolt 6 model offers an improved Longer Range algorithm, an SDI Eye Pattern Tool to check your SDI signal integrity, and more. Bolt 6 is fully cross-compatible with the entire Bolt 4K ecosystem, including the Bolt Manager App for iOS and Android.
In the Bolt 6 LT model range, next generation 6GHz wireless solutions let you cut through cluttered airwaves with up to 4K resolution in a compact, lightweight form factor, plus full 5GHz cross-compatibility across all Bolt 4K Series devices.
With a 1500 ft. range as the Bolt 4K LT, fully-capable of operating on the 12 U-NII 5 channels like the rest of the Bolt 6 line.
This model is the 1500 RX Gold-Mount from the BOLT 6 LT series.
Features
- Receive Wireless Video up to DCI 4K
- Zero-Delay wireless video (<0.001sec)
- 4K HDR with 10-bit 4:2:2
- 1500 feet of range
- Transmit 1080p60 with SDI
- Gold-Mount
Comes With
- 1 x Bolt 6 LT 1500 RX Gold Mount
- 2 x Bolt 4K LT RX Battery Cover
- 2 x Screw Flat Head Phillips
- 1 x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
- 1 x SDI – BNC to BNC Cable, 10in
- 1 x PSU 2pin Conn. to 18W AC Adapter (Int) – 6ft Cable
- 1 x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable
| BRAND | TERADEK |
|---|---|
| MPN | 10-2272-G |
Specification
| Video Outputs | 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) |
| 1 x HDMI 1.4b Type-A receptacle | |
| Sdi Ancillary Data Support | Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. |
| Colour Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit |
| Output Video Scaling | No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output |
| Supported Resolutions | 4Kp23.98/24/25/29.97/30 (HDMI only) |
| 1080p23.98/24/25/29.97/30/50/59.94/60 | |
| 1080psf23.98/24/25/29.97/30 | |
| 1080i50/59.94/60 | |
| 720p50/59.94/60 | |
| 480p59.94 576p50 | |
| 480i(NTSC)/576i(PAL) | |
| Video Compression | Visually Lossless |
| Test Pattern Generator Support | Yes |
| Spectrum Analyzer | Yes |
| Colour Correction | 17x17x17 3D LUT (supports 10-bit colour) |
| Audio Compression | 48kHz 24-bit PCM |
| Audio Output | Embedded SDI/HDMI Audio Output (2 Channel) |
| Dimensions | 122mm x 94mm x 27mm |
| Weight | 292g (10.3oz) |
| Construction | Milled Aluminium(Chassis) and regulation-compliant PCB |
| Mountability | Multiple mounting options with 1/4"x20 and 3/8"x16 holes |
| Configuration Interfaces | OSD with Menu, Joystick Navigation |
| Switches | On/Off Switch |
| Mobile App | Bolt App |
| Desktop App | Bolt Manager application for OSX & Windows |
| Usb Interface Functionality | Upgrade via Micro-USB |
| Bluetooth | 2.4 GHz |

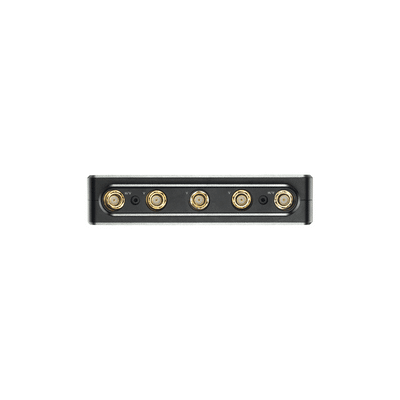

| Antennas | 5 External 2 dBi antennas (included) |
| Wireless | Non-DFS Frequencies: |
| 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz | |
| DFS Frequencies: | |
| 5.270 ~ 5.670 GHz | |
| Rf Channel Selection | Auto, Manual |
| Encryption | AES-256, RSA-1024 key exchange |
| Rf Power | 21 dbm EIRP |
| Range | Up to 1500 ft, line of sight |
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones |
| Can operate up to 6 sets in same location | |
| Interoperability | Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device) |
| Power Input | 2-Pin Circular locking Connector 6-28 VDC |
| Battery | None, optional Gold or V mount battery plate |
| Nominal Power Consumption | 11 Watts |
| Operating Temperature | 0-40℃ |
