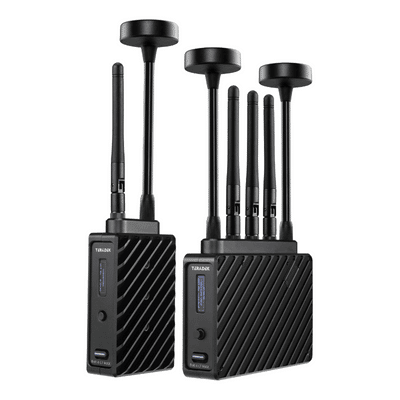

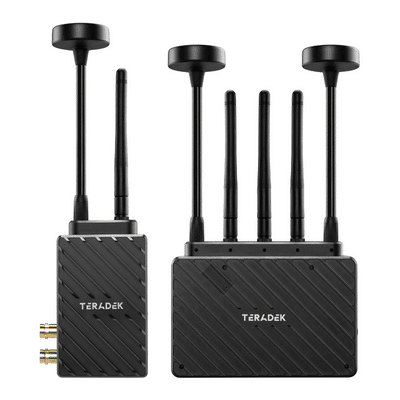

Teradek Bolt 6 LT MAX TX/RX

Description

Teradek Bolt 6 LT MAX TX/RX (TER-10-2198-7) features new technology that doubles the frequency range of Bolt 4K’s zero-delay wireless video to the 6GHz U-NII 5 band. This means 12 new 40MHz wide channels and an upgraded long-range signal algorithm for the gamut of production environments.

Each Bolt 6 model offers an improved Longer Range algorithm, an SDI Eye Pattern Tool to check your SDI signal integrity, and more. Bolt 6 is fully cross-compatible with the entire Bolt 4K ecosystem, including the Bolt Manager App for iOS and Android.

In the Bolt 6 LT model range, next generation 6GHz wireless solutions let you cut through cluttered airwaves with up to 4K resolution in a compact, lightweight form factor, plus full 5GHz cross-compatibility across all Bolt 4K Series devices. With a 5000 ft. range, fully-capable of operating on the 12 U-NII 5 channels like the rest of the Bolt 6 line.

This model is the MAX TX/RX from the BOLT 6 LT MAX series.

Features

• Receive Wireless Video up to DCI 4K
• Zero-Delay wireless video (<0.001sec)
• 4K HDR with 10-bit 4:2:2
• 5000 feet of range
• Transmit 4Kp30 with 1080p60 with SDI

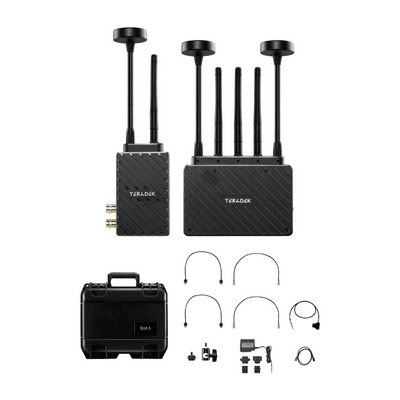

Comes With

• 1 x Bolt 6 LT MAX TX
• 1 x Bolt 6 LT MAX RX
• 1 x Lightstand Adapter ¼-20in
• 1 x Hot Shoe Adaptor
• 1 x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
• 2 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in/46cm Cable
• 2 x SDI – BNC to BNC Cable, 10in
• 1 x PSU 2pin Conn. to 18W AC Adapter (Int) – 6ft Cable
• 1 x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable
