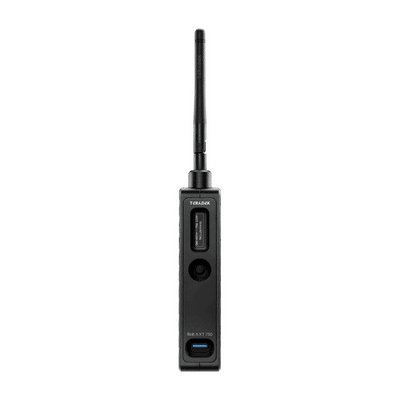

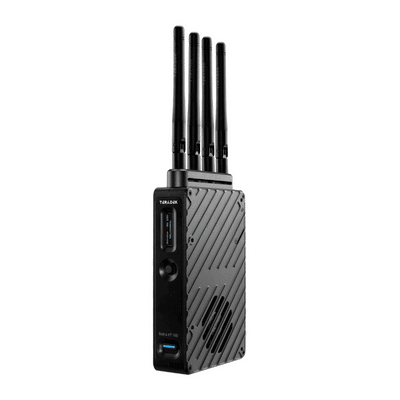

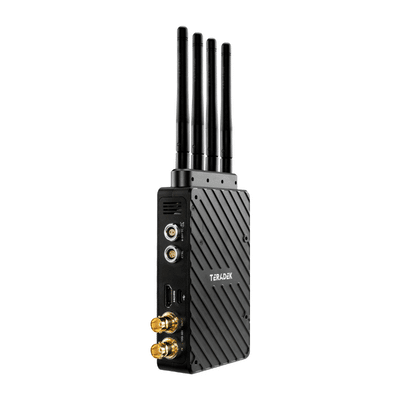

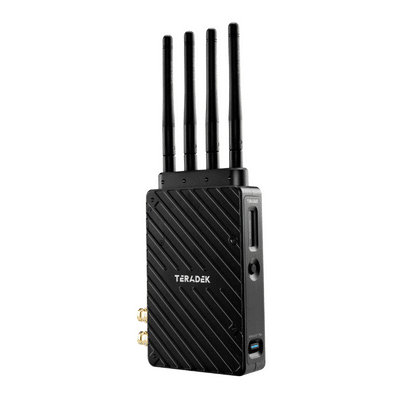

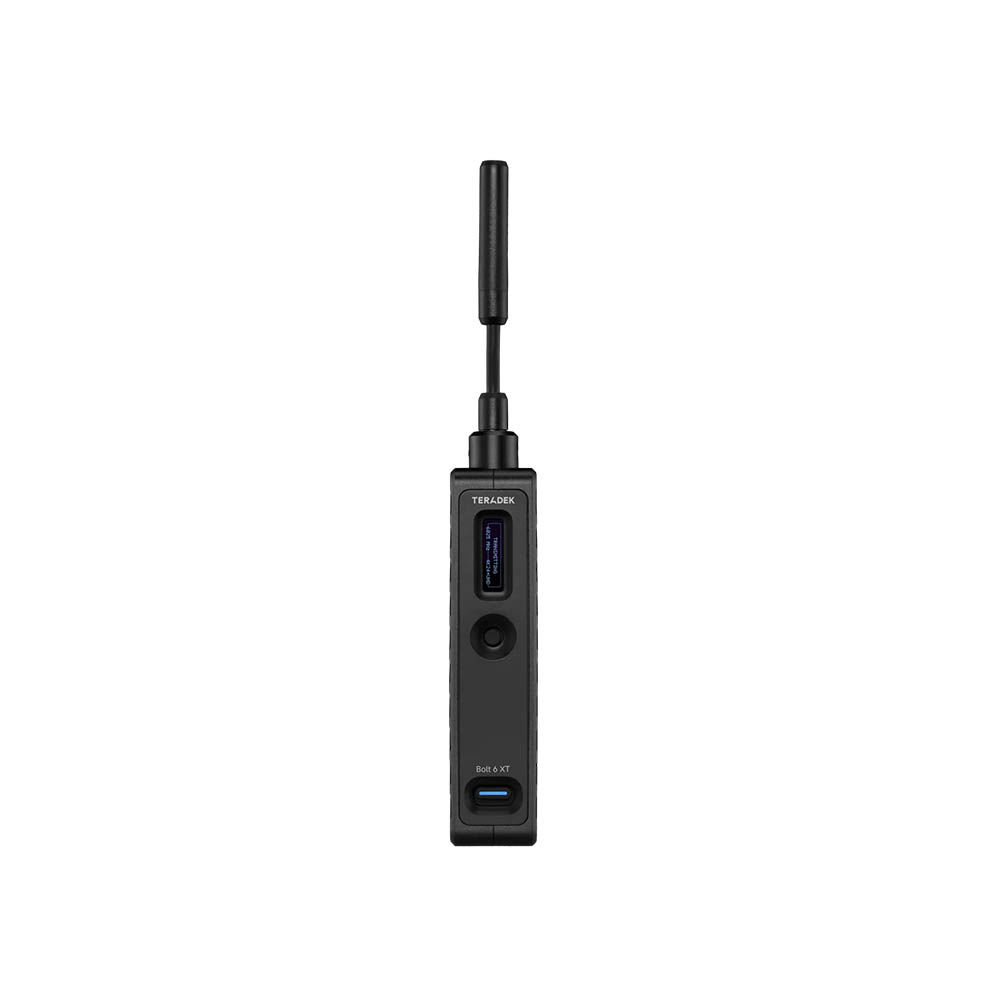

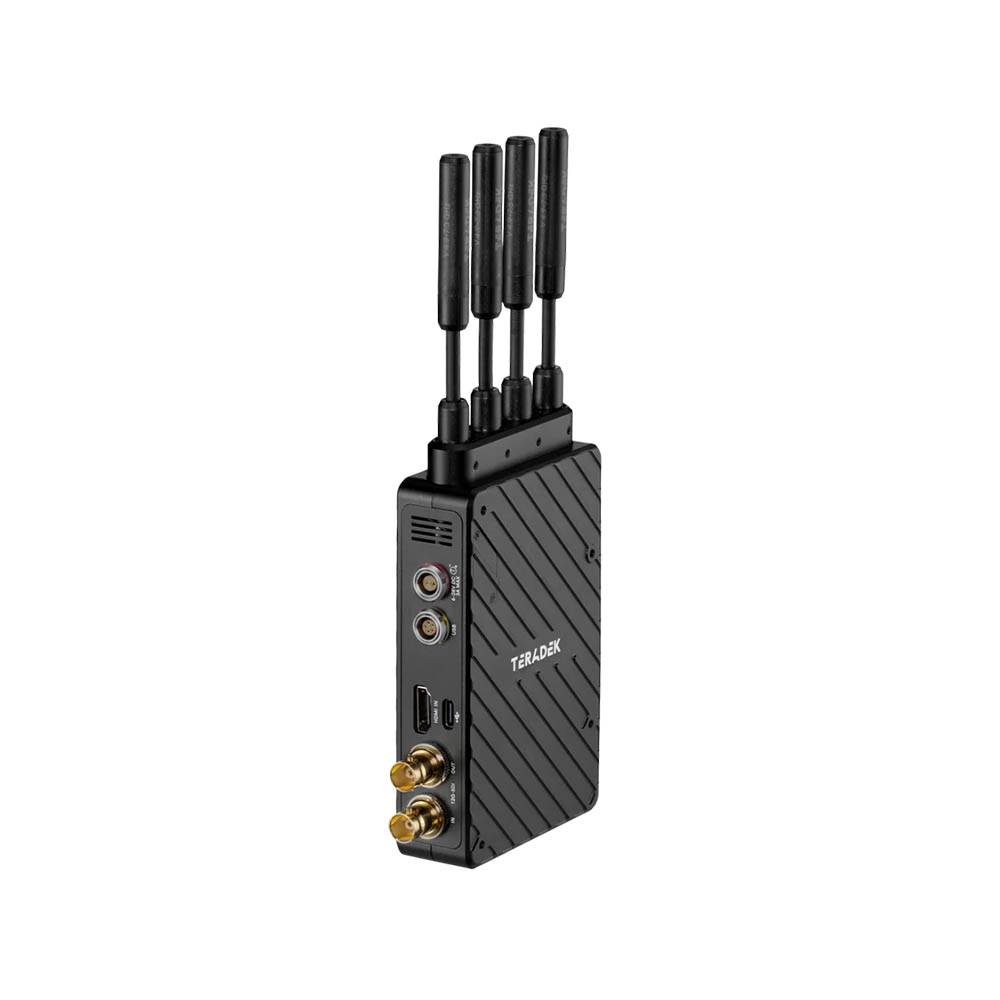

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless TX
Order Now - Usually delivered in 2-3 weeks
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless TX (TER-10-2301) is the redesigned, zero-delay, streamlined, wireless video solution with next-generation 6GHz connectivity, plus cross-compatibility with the Bolt 4K Series.
12G-SDI + HDMI for full DCI 4K resolution in 10-bit 4:2:2 HDR; with integrated 5-pin USB for wireless camera control; integrated battery plate options with power pass-through, and more!
Bolt 6 XT offers the most upgrades in the Bolt 6 family, including a redesigned form factor that’s smaller, lighter, cooler, and up to 50% quieter than its Bolt 4K counterpart.
Bolt 6 will also feature an integrated 5-pin USB for a more seamless SmallHD camera-control setup.
Features
- Zero-Delay wireless video (<0.001sec)
- Up to DCI 4K resolution
- True HDR with 10-bit 4:2:2
- Inputs: 12G-SDI, HDMI 2.0
- Outputs: 12G-SDI, HDMI 2.0

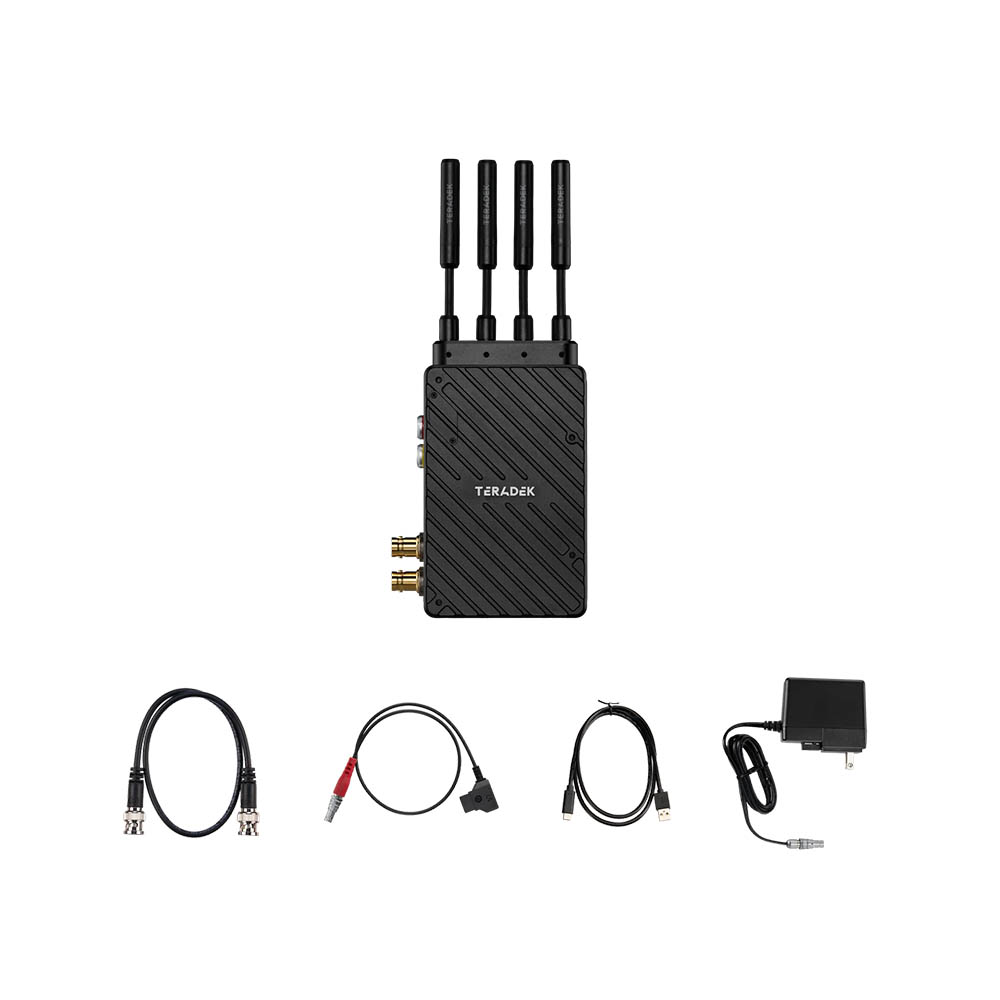

Comes With
- 1 x Bolt 6 XT 750 TX
- 1 x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
- 1 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in/46cm Cable
- 1 x SDI 12G BNC to BNC 18in/46cm Cable
- 1 x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable
- 4 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
- 1 x USB 2.0 Type A Male to USB Type C Male – 1m Cable
| BRAND | TERADEK |
|---|---|
| MPN | Oct-01 |
Specification
| Video | |
| Video Inputs | 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle |
| Video Outputs | 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) |
| SDI Ancillary Data Support | Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers. |
| Colour Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit |
| Delay Tx To Rx | <0.001sec |
| Input Cross Conversion | Yes, HDMI to SDI |
| Supported Resolutions | |
| Supported Resolutions | 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) |
| Video Processing | |
| Video Compression | Visually Lossless |
| Colour Correction | None |
| Audio Processing | |
| Audio Compression | 48kHz 24-bit PCM |
| Input | |
| Audio Input | Embedded SDI/HDMI Audio Output (2 Channel) |
| Physical | |
| Dimensions | 132 x 91 x 27 mm |
| Weight | 344g (12.1 Oz) |
| Construction | Milled Aluminium(Chassis) and regulation-compliant PCB |
| Mountability | Multiple mounting options with 1/4"x20 and M3 holes |
| Interfaces | |
| Configuration Interfaces | OSD with Menu, Joystick Navigation |
| Switches | On/Off Switch |
| USB Interface Functionality | Upgrade via USB-C 5pin Locking Connector CCU |
| Bluetooth | 2.4 GHz |
| Network | |
| Antennas | 4 External 2 dBi antennas (included) |
| Wireless | Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz |
| Rf Channel Selection | Auto, Manual |
| Encryption | AES-256, RSA-1024 key exchange |
| Rf Power | 23 dbm EIRP |
| Range | Up to 750 ft, line of sight |
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location |
| Power | |
| Power Input | 2-Pin Circular locking Connector 6-28 VDC |
| Battery | None, optional Gold or V mount battery plate |
| Battery Runtime | 20 Watts |
| Environmental | |
| Operating Temperature | 0-40℃ |
