Teradek Bolt 6 XT 750 TX/RX Deluxe GM
£4,860.00 £7,140.00 £4,050.00 Ex. VAT
Order Now - Usually delivered in 2-3 weeks

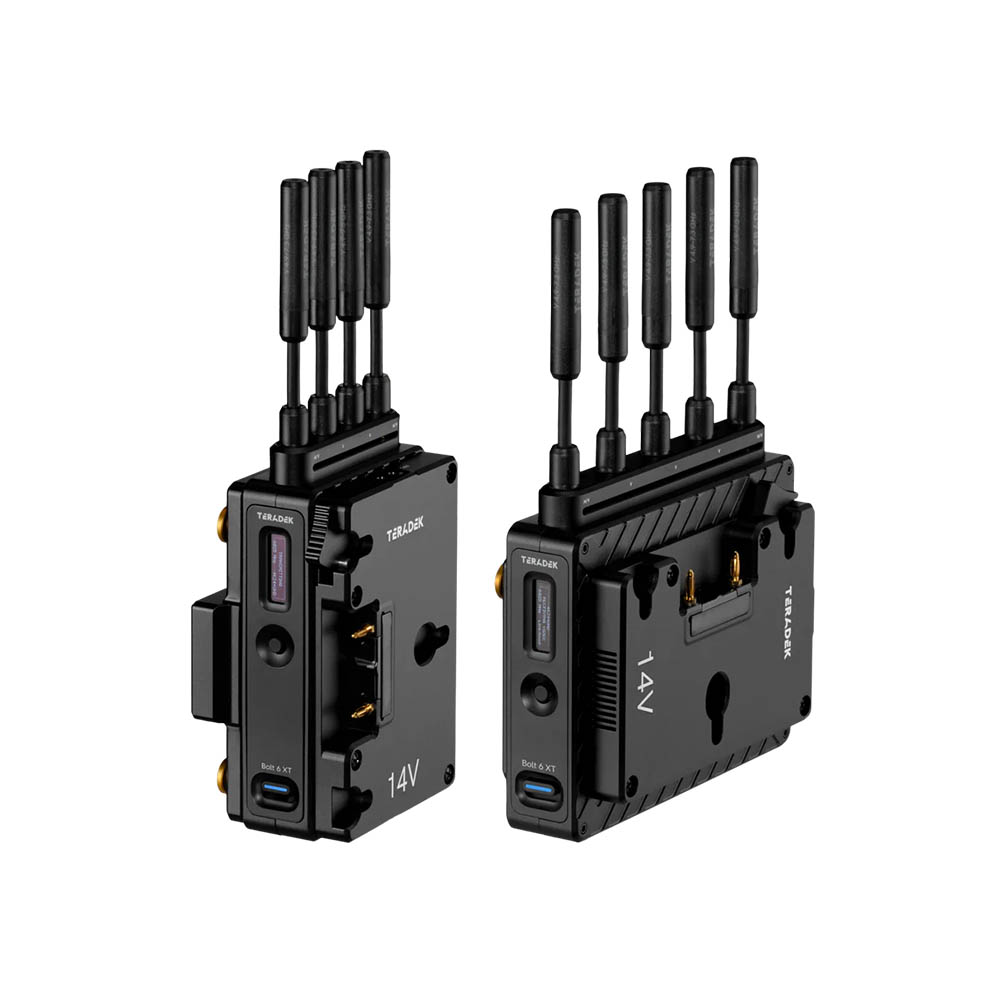

Teradek Bolt 6 XT 750 TX/RX Deluxe GM (10-2300-G) is a wireless video transmission system that supports up to 4K60 10-bit 422 HDR video over 12G-SDI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 XT Sets offer three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter.
The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.
Kit options include the Transmitter and Receiver by themselves or within a Deluxe kit that also includes Gold or V-Mount Battery plates.
Features
- Zero Delay
- 6GHz Wireless Frequency
- Bolt 4K Cross-Compatibility
- Lightweight and Quiet
- Built in 5-pin USB for camera control

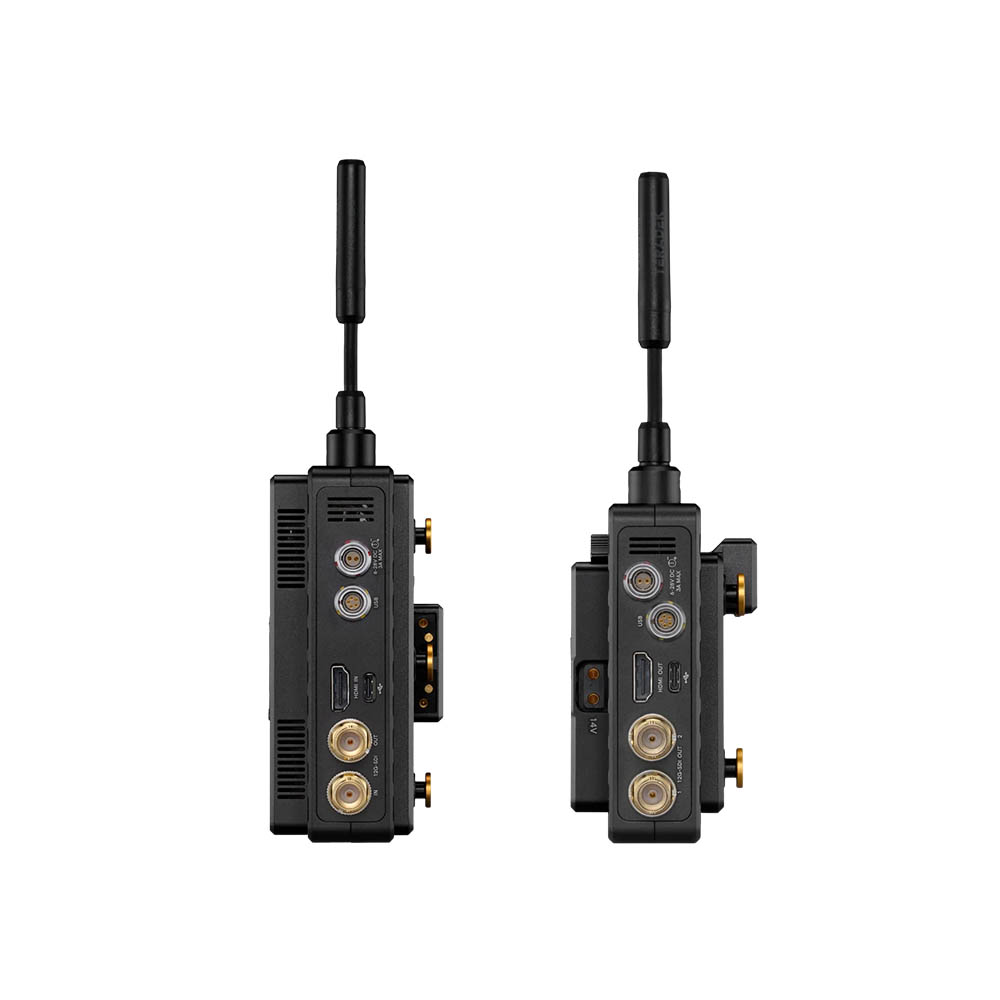

- Inputs: 12G-SDI, HDMI 2.0
- Outputs: 12G-SDI, HDMI 2.0

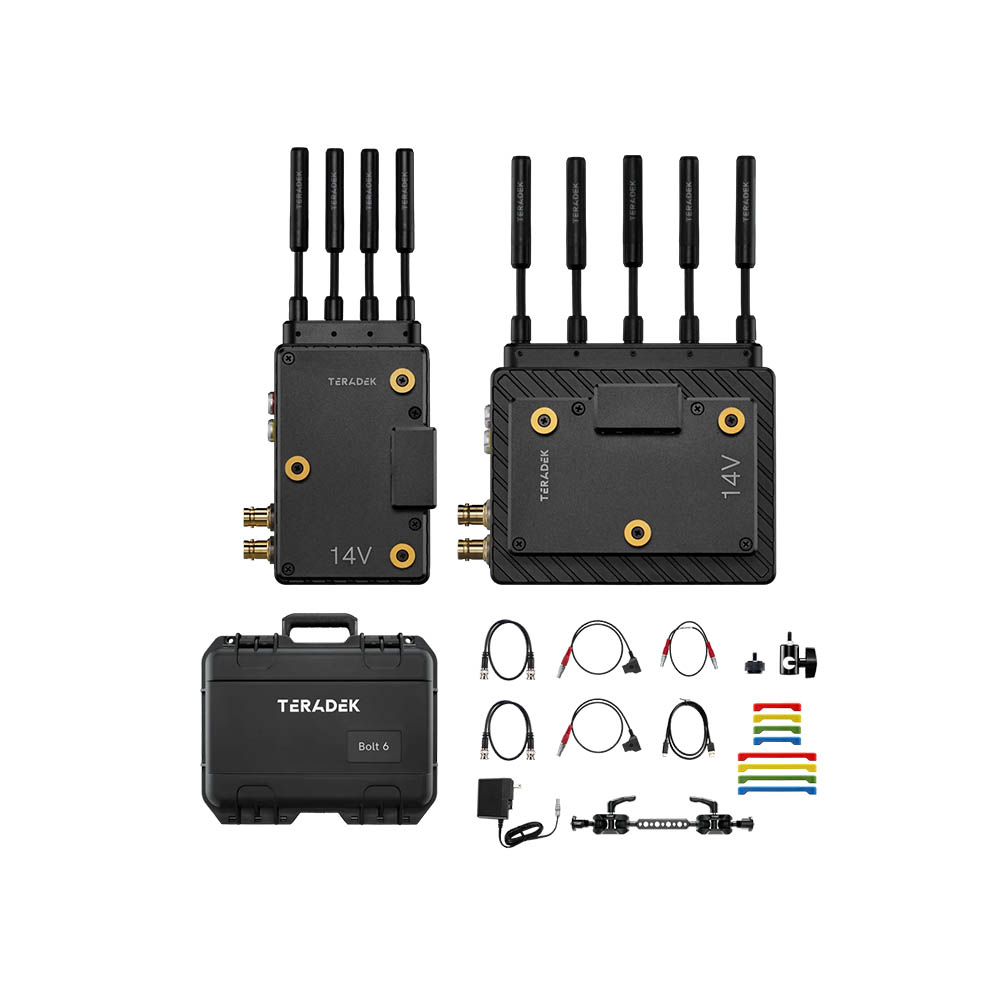

Comes With
- 1x Bolt 6 XT 750 TX Gold Mount
- 1x Bolt 6 XT 750 RX Gold Mount
- 1x Lightstand Adapter 1/4-20in
- 1x Hot Shoe Adaptor
- 1x Hex L key 2.5mm size 3-5/8″ length
- 2x 2pin Conn. to PowerTap – 18in/46cm Cable
- 1x 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
- 2x SDI 12G BNC to BNC 18in/46cm Cable
- 1x Teradek Case Large – Bolt XT TX/2RX1x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable
- 9x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
- 1x Wooden Camera – Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16, 5″)
- 1x USB 2.0 Type A Male to USB Type C Male – 1m Cable
- 1x Bolt 6 XT TX Colour Band (Red Rubber)
- 1x Bolt 6 XT TX Colour Band (Yellow Rubber)
- 1x Bolt 6 XT TX Colour Band (Green Rubber)
- 1x Bolt 6 XT TX Colour Band (Blue Rubber)
- 1x Bolt 6 XT RX Colour Band (Red Rubber)
- 1x Bolt 6 XT RX Colour Band (Yellow Rubber)
- 1x Bolt 6 XT RX Colour Band (Green Rubber)
- 1x Bolt 6 XT RX Colour Band (Blue Rubber)
| BRAND | TERADEK |
|---|---|
| MPN | 10-2300-G |
Delivery
Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.
Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).
Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail, DPD or APC, this service can take 3-5 working days.
FREE UK Delivery On Orders Over £300 Ex. VAT
We offer FREE standard delivery on all orders over £300 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.
Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.
Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.
*Excluding all Battery Generators*
Worldwide Shipping
At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.
Specification
| Video | |
| Video Inputs | 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle |
| Video Outputs | 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) |
| SDI Ancillary Data Support | Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers. |
| Colour Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit |
| Delay Tx To Rx | <0.001sec |
| Input Cross Conversion | Yes, HDMI to SDI |
| Supported Resolutions | |
| Supported Resolutions | 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) |
| Video Processing | |
| Video Compression | Visually Lossless |
| Colour Correction | None |
| Audio Processing | |
| Audio Compression | 48kHz 24-bit PCM |
| Input | |
| Audio Input | Embedded SDI/HDMI Audio Output (2 Channel) |
| Physical | |
| Dimensions | 132 x 91 x 27 mm |
| Weight | 344g (12.1 Oz) |
| Construction | Milled Aluminium(Chassis) and regulation-compliant PCB |
| Mountability | Multiple mounting options with 1/4"x20 and M3 holes |
| Interfaces | |

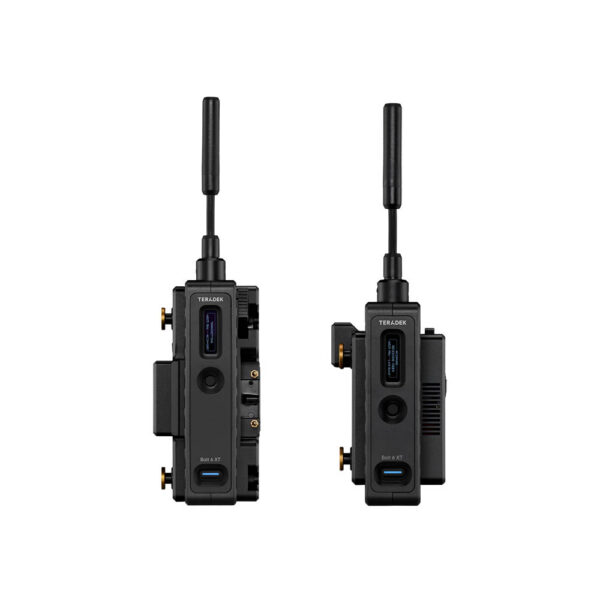

| Configuration Interfaces | OSD with Menu, Joystick Navigation |
| Switches | On/Off Switch |
| USB Interface Functionality | Upgrade via USB-C 5pin Locking Connector CCU |
| Bluetooth | 2.4 GHz |
| Network | |
| Antennas | 4 External 2 dBi antennas (included) |
| Wireless | Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz |
| Rf Channel Selection | Auto, Manual |
| Encryption | AES-256, RSA-1024 key exchange |
| Rf Power | 23 dbm EIRP |
| Range | Up to 750 ft, line of sight |
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location |
| Power | |
| Power Input | 2-Pin Circular locking Connector 6-28 VDC |
| Battery | None, optional Gold or V mount battery plate |
| Battery Runtime | 20 Watts |
| Environmental | |
| Operating Temperature | 0-40℃ |
| Bolt 6 RX | |
| Video | |
| Video Outputs | 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle |
| SDI Ancillary Data Support | Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers. |
| Colour Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit |
| Delay Tx To Rx | <0.001sec |
| Output Video Scaling | Yes, Framerate and Resolution Scaling |
| Supported Resolutions | |
| Supported Resolutions | 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) |
| Video Processing | |
| Video Compression | Visually Lossless |
| Colour Correction | 17x17x17 3D LUT (supports 10-bit colour) |
| Audio Processing | |
| Audio Compression | 48kHz 24-bit PCM |
| Outputs | |
| Audio Output | Embedded SDI/HDMI Audio Output (2 Channel) |
| Physical | |
| Dimensions | 112 x 139 x 27 mm |
| Weight | 430g (15.2 Oz) |
| Construction | Milled Aluminium(Chassis) and regulation-compliant PCB |
| Mountability | Multiple mounting options with 1/4"x20 and 3/8"x16 holes |
| Interfaces | |
| Configuration Interfaces | OSD with Menu, Joystick Navigation |
| Switches | On/Off Switch |
| USB Interface Functionality | Upgrade via USB-C 5pin Locking Connector CCU |
| Bluetooth | 2.4 GHz |
| Network | |
| Antennas | 5 External 2 dBi antennas (included) |
| Wireless | Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz |
| Rf Channel Selection | Auto, Manual |
| Encryption | AES-256, RSA-1024 key exchange |
| Rf Power | 21 dbm EIRP |
| Range | Up to 750 ft, line of sight |
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location |
| Power | |
| Power Input | 2-Pin Circular locking Connector 6-28 VDC |
| Battery | None, optional Gold or V mount battery plate |
| Battery Runtime | 18 Watts |
| Environmental | |
| Operating Temperature | 0-40℃ |
