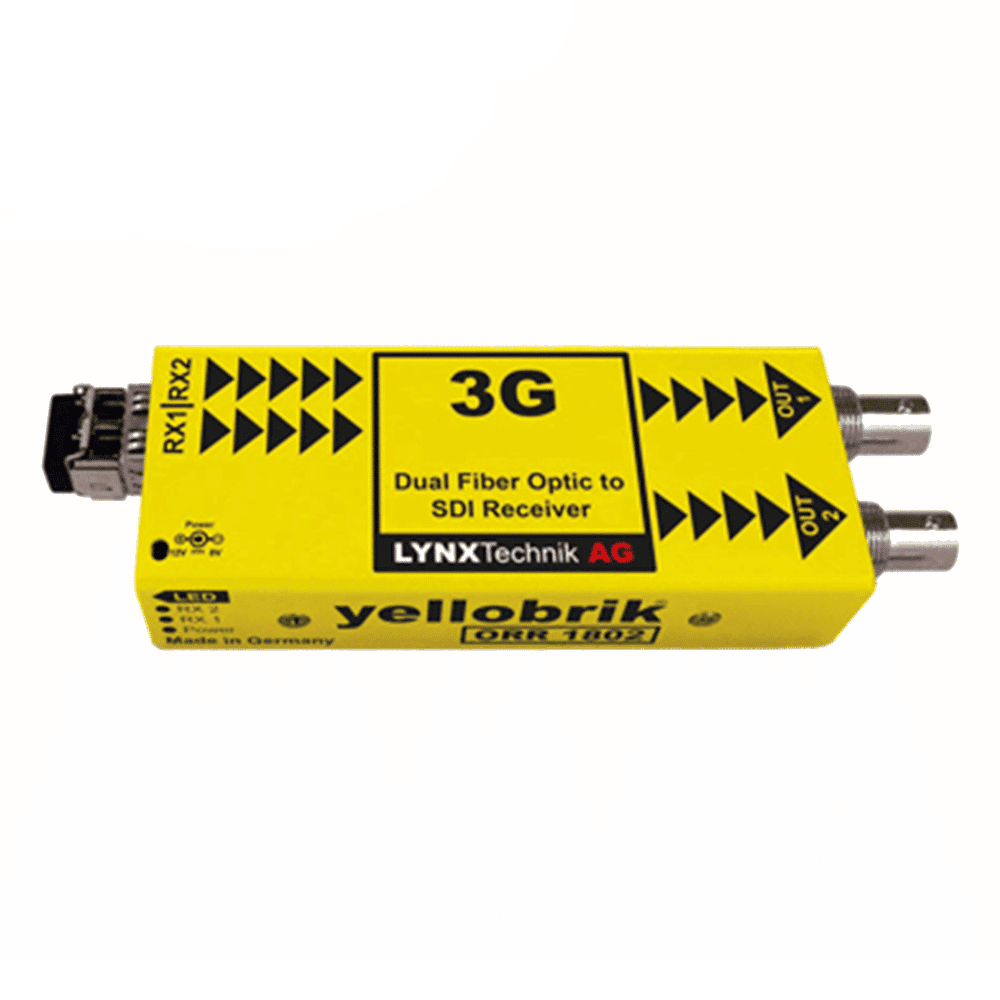

Yellobrik ORR 1802 Dual 3Gbit Fiber Optic to SDI Receiver
£600.00 £500.00 Ex. VAT
Only 1 left in stock
Description
Yellobrik ORR 1802 Dual 3Gbit Fiber Optic to SDI Receiver (ORR 1802-2) is a compact dual channel fiber optical to SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.
When paired with a SDI optical transmitter (e.g. yellobrik OTT 1812, OTX 1812, OTX 1842 etc) you have a very cost effective optical transmission/receiver system for signals up to 1080p60 (3Gbit/s), while preserving full uncompressed quality.
The ORR1802 has two completely independent channels and each will auto-detect and re-clock any 270Mbit / 1.48Gbit and 2.97Gbit SDI fiber source prior to electrical conversion. The module is fully compatible with 3Gbit Level A and Level B formats.
Features
- Dual channel
- Supports SDI video inputs up to 3Gbit/s (1080p60)
- 3G Level A and Level B support (all formats)
- Auto reclocking 270M / 1.5G / 3G
- Error free optical reception
- 1260nm to 1620nm wavelength input range
- Duplex LC/PC singlemode optical connection
- Supports hot swapping and hot plugging
Ordering Information
| ORR 1802-2 | Dual 3Gbit Fiber Optic to SDI Receiver |
|---|---|
| OTT 1812-1 | Dual 3G SDI to Fiber Optic Transmitter |
| OTX 1812 | 3G SDI to Fiber Optic Transmitter |
| OTX 1842 | 3Gbit SDI to Fiber Optic Transmitter (CWDM) |
| OH-RR-1-LC | Dual Channel 3Gbit SDI Optical Receiver |
| RFR 1000-1 | yellobrik 1RU Rack Frame |
| RFR 1001 | yellobrik Mounting Bracket |
| LC/SC Dup | LC Connector to SC Connector Adapter Kit |
| LC/ST Dup | LC Connector to ST Connector Adapter Kit |
| XLR 1000 | 4 Pin XLR Camera Battery Adapter Cable |
| P-TAP 1000 | P-TAP Battery Adapter Cable |
