Lynx Technik Yellobrik CQS 1462 12G 4x3G-SDI Bi-Directional SQD/2SI Quad Link to Single Link Converter

Description

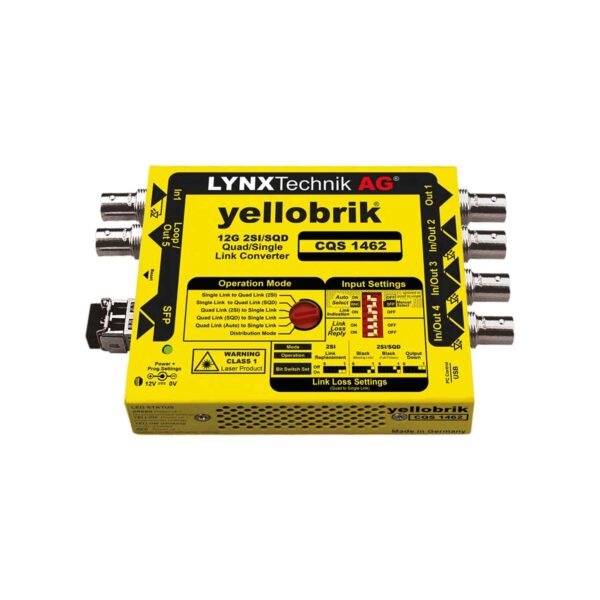

The CQS 1462 is a compact solution designed to bridge 6G/12G SDI Quad Link 2SI/SQD devices and Single Link 1.5G/3G/6G/12G SDI devices. Conversion modes include:
• Single Link to Quad Link (2SI) [1x12G-SDI ► 4x3G-SDI Level A / 1x6G-SDI ► 4×1.5G-SDI]
• Single Link to Quad Link (SQD) [1x12G-SDI ► 4x3G-SDI Level A / 1x6G-SDI ► 4×1.5G-SDI]
• Quad Link (2SI) to Single Link [4x3G-SDI Level A ► 1x12G-SDI / 4×1.5G-SDI ► 1x6G-SDI]
• Quad Link (SQD) to Single Link [4x3G-SDI Level A ► 1x12G-SDI / 4×1.5G-SDI ► 1x6G-SDI]
• Auto Quad Link to Single Link
• Distribution Amplifier mode (1►5+1) [1.5G / 3G / 6G / 12G -SDI]

Operational mode can be selected from the local rotary switch or via the LynxCentraal or yelloGUI control software. The CQS 1462 can also be used as a 1► 5+1 distribution amplifier if needed. Link identification is possible through on-screen overlays which can be helpful for connectivity problems or link loss.

The module is suitable for all SMPTE standard signals from 1.5G-SDI to 12G SDI (SMPTE 292M, 424M, 2081 and 2082). For optical inputs and outputs, we offer optional SDI SFPs, in both CWDM and non-CWDM variants.

Features

• Support for 12G/6G/3G/1.5G-SDI Video Formats
• 12G-SDI 2SI/SDQ  and 6G-SDI Conversion in both directions
• [Single ► Quad Link / Quad ► Single Link]
• 12G/6G/3G/1.5G Distribution Mode 1►5+1
• [BNC ► 5xBNC + 1xSFP* / SFP* ► 5xBNC]
• Automatic Link Loss Reply Options for 2SI/SQD
• Quad Link 12G-SDI to Single Link Fiber*
• Single Link Loopback Output
• 5x BNC and 1x Fiber Output*
• 4x BNC and Fiber Input*
• LynxCentraal & yelloGUI compatible for additional internal settings
